Defect #31330

closed

Import issues: File content preview block is scrolling

Added by Yuichi HARADA almost 5 years ago. Updated almost 5 years ago.

Status:
Closed
Priority:
Normal
Assignee:
Jean-Philippe Lang
Category:
UI
Target version:
4.0.4
Start date:
Due date:
% Done:

0%

Estimated time:
Resolution:
Fixed
Affected version:

Description

I am showing a preview of the CSV file in /imports/mapping, but the behavior of overflow-x is strange.

expect actual

The below patch fixes the problem:

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index b2a253cad..ed02f5139 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -345,7 +345,7 @@ table.list.enumerations {table-layout: fixed; margin-bottom: 2em;}

 tr.group td { padding: 0.8em 0 0.5em 0.3em; border-bottom: 1px solid #ccc; text-align:left; background-color: #fff;}
 tr.group span.count {top:-1px;}
-tr.group span.name {font-weight:bold;}}
+tr.group span.name {font-weight:bold;}
 tr.group span.totals {color: #aaa; font-size: 80%;}
 tr.group span.totals .value {font-weight:bold; color:#777;}
 tr.group a.toggle-all { color: #aaa; font-size: 80%; display:none; float:right; margin-right:4px;}
@@ -430,6 +430,7 @@ span.add_attachment a {padding-left:16px; background: url(../images/bullet_add.p
   word-wrap: break-word;
   border-radius: 3px;
 }
+#import-form div.autoscroll fieldset.box { overflow-x: auto; }

 div.square {
   border: 1px solid #999;

Files

Download all files

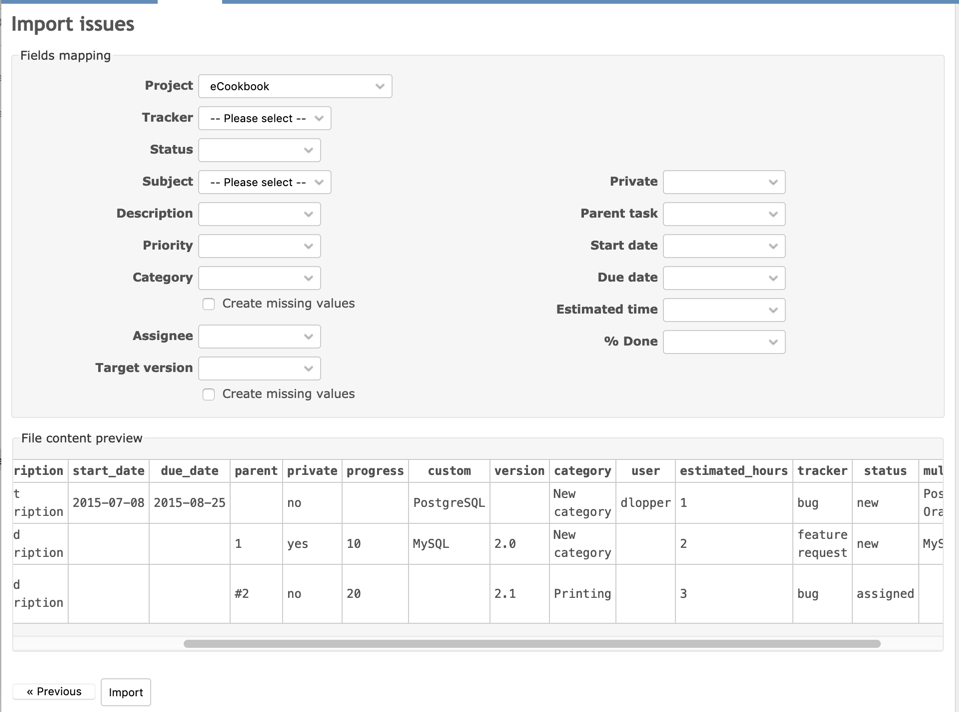

expect_importfile_preview.png (104 KB) expect_importfile_preview.png Yuichi HARADA, 2019-05-09 08:45

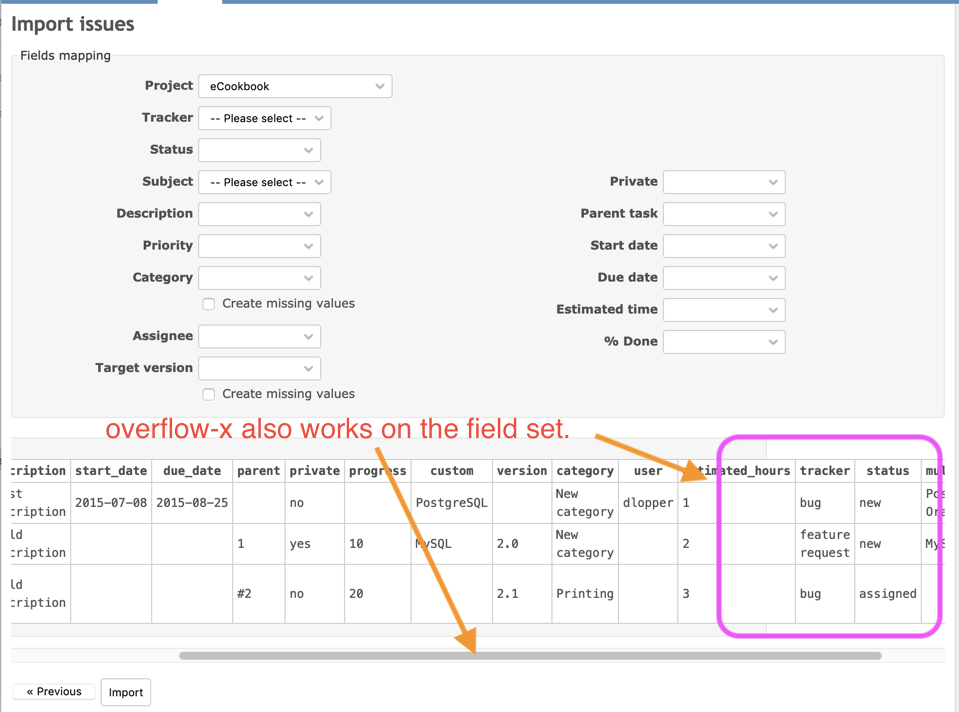

actual_importfile_preview.png (123 KB) actual_importfile_preview.png Yuichi HARADA, 2019-05-09 08:48
Actions
Copy link
 #1

Updated by Go MAEDA almost 5 years ago

  • Category set to UI

Thank you for reporting this issue. Do you know if the issue affects not only the trunk but also 4.0-stable or 3.4-stable?

Actions
Copy link
 #2

Updated by Yuichi HARADA almost 5 years ago

Go MAEDA wrote:

Thank you for reporting this issue. Do you know if the issue affects not only the trunk but also 4.0-stable or 3.4-stable?

I confirmed 3.4-stable and 4.0-stable and trunk. I found the difference between 3.4-stable and 4.0-stable. This difference was also confirmed in trunk.

$ diff 3.4-stable/public/application.css 4.0-stable/public/stylesheets/application.css
.....

437c453
< fieldset {border: 1px solid #e4e4e4; margin:0;}
---
> fieldset {border: 1px solid #e4e4e4; margin:0; min-width: inherit;}

.....

Based on this, I rebuilt the CSS settings. This patch is not necessary for 3.4-stable.

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index af34a8c88..0b9c62b35 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -430,6 +430,10 @@ span.add_attachment a {padding-left:16px; background: url(../images/bullet_add.p
   word-wrap: break-word;
   border-radius: 3px;
 }
+#import-form div.autoscroll fieldset.box {
+  min-width: auto;        /* Edge */
+  min-width: fit-content;
+}

 div.square {
   border: 1px solid #999;

Actions
Copy link
 #3

Updated by Go MAEDA almost 5 years ago

  • Target version set to 4.0.4

Thank you for investigating further. I am setting the target version to 4.0.4.

Actions
Copy link
 #4

Updated by Go MAEDA almost 5 years ago

  • Status changed from New to Needs feedback
  • Assignee set to Yuichi HARADA

It seems that the fix does not work for Firefox. Could you check the patch again?

Actions
Copy link
 #5

Updated by Yuichi HARADA almost 5 years ago

Go MAEDA wrote:

It seems that the fix does not work for Firefox. Could you check the patch again?

Sorry, I did not confirm with Firefox.
An examination of "fit-content" showed that a vendor prefix is required.
I rebuilt a patch.

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index 11b9263ba..72660ffdd 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -430,6 +430,12 @@ span.add_attachment a {padding-left:16px; background: url(../images/bullet_add.p
   word-wrap: break-word;
   border-radius: 3px;
 }
+#import-form div.autoscroll fieldset.box {
+  min-width: auto;        /* Edge */
+  min-width: fit-content;
+  min-width: -webkit-fit-content;
+  min-width: -moz-fit-content;
+}

 div.square {
   border: 1px solid #999;
Actions
Copy link
 #6

Updated by Jean-Philippe Lang almost 5 years ago

  • Status changed from Needs feedback to Closed
  • Assignee changed from Yuichi HARADA to Jean-Philippe Lang
  • Resolution set to Fixed

The autoscroll div was wrapping the fieldset, this should be fixed by r18243.
