BASH Syntax Highlighting

Added by Jared Bloomer over 7 years ago

So I googled and googled and came up with Nil for BASH syntax highlighting using the coderay engine in Redmine. So I did what any true Sys Admin would do, I dove into the code and figured out how to add it myself. I didn't get a chance to add in command option highlighting though, and that is something I would like to add eventually.

So for starters I just copied the sql.rb config and modified it to suit my needs for BASH. It actually came out fairly nice.

So I will refer to your redmine installation as $RedmineDocumentRoot. In my case it is /var/www/redmine/. So if you want to add in BASH syntax highlighting, here is what you need to do (And I did this on Linux, so you Windows guys will need to adapt and figure out the path for all of this).

1.

cd $RedmineDocumentRoot/vendor/gems/coderay-<version>/lib/coderay/scanners/

2. Create a file named bash.rb and add the following contents (and no, I am not using the "code" tag for this to avoid adding line numbers so YOU can literally just copy and paste the text without having to delete the line numbers).
module CodeRay module Scanners

  # by Jared Bloomer
  class BASH < Scanner

    register_for :bash

    KEYWORDS = %w(
      case
      env
      exit export function
      getopts hash if import info
      let local logname
      read select seq set shift
      source trap
      tr true type ulimit umask uname unexpand uniq units unset unshar
      until
      which while xargs yes # else done for in do then fi
    )

    OBJECTS = %w(
      $ -
    )

    COMMANDS = %w(
    arch basename bash cgclassify cgcreate cgdelete cgexec cgget cgset dash
    dbus-cleanup-sockets dbus-daemon dbus-monitor dbus-send dmesg ed gettext
    ipcalc kbd_mode keyctl link loadkeys login mktemp nano ping ping6 plymouth
    readlink red rpm setfont setserial sort taskset tcsh tracepath tracepath6
    true uname  accton arp arping audispd auditctl auditd aureport ausearch
    autrace badblocks busybox cbq cfdisk cgconfigparser cgrulesengd chkconfig
    consoletype crda cryptsetup ctrlaltdel debugfs delpart depmod dhclient
    dhclient-script dm_dso_reg_tool dmsetup dosfsck dosfslabel e2fsck e2image
    e2label e2undo echo ethtool faillock fdisk fixfiles fsadm fsck fsck.cramfs
    fsck.ext2 fsck.ext3 fsck.ext4 fstab-decode fstrim fuser getkey grub grubby
    grub-crypt grub-install grub-md5-crypt ifcfg ifconfig ifrename ifup init
    initctl insmod install-info installkernel ip ip6tables-multi iptables-multi
    iptunnel kexec kpartx ldconfig load_policy losetup MAKEDEV matchpathcon mdadm
    mdmon microcode_ctl mii-diag mii-tool mkdosfs mke2fs mkfs mkfs.cramfs
    mkfs.ext2 mkfs.ext3 mkfs.ext4 mkinitrd modinfo nameif netreport nologin
    pam_console_apply pam_tally2 parted partx pccardctl plipconfig plymouthd rdisc
    reboot request-key resize2fs rngd route rpcbind rsyslogd rtmon runuser setfiles
    setpci setregdomain setsysfont sfdisk sgpio slattach sysctl tc telinit tune2fs
    a2p ab abrt-action-analyze-backtrace abrt-action-analyze-c
    abrt-action-analyze-core abrt-action-analyze-python
    abrt-action-generate-backtrace abrt-action-install-debuginfo
    abrt-action-list-dsos abrt-action-trim-files abrt-cli abrt-handle-upload ac
    aconnect afs5log amixer aplay apu-1-config ar as aseqnet assistant_adp
    assistant-qt4 at attr aulast aulastlog ausyscall autoconf automake
    automake-1.11 autoreconf autoscan base64 bashbug-32 batch bc bison blkiomon
    blkparse blktrace bmp2tiff bno_plot.py btparser btrace btrecord btreplay btt
    c++ c2ph c89 c99 cal callgrind_annotate callgrind_control cas cas-admin
    certmaster-getcert certutil c++filt cg_annotate cg_merge chacl chage chattr
    chcon checkpolicy chfn chrt chsh ci cjpeg ck-launch-session ck-list-sessions
    cloog cmp co col colcrt column comm compile_et config_data consolehelper
    corelist crash crlutil cscope cscope-indexer ctags curl curl-config cytune
    db_checkpoint db_codegen db_deadlock db_hotbackup dbilogstrip db_load db_upgrade
    dbus-binding-tool dc debuginfo-install dig djpeg doxygen doxytag easy_install
    easy_install-2.6 elinks enc2xs encode_keychange eqn eqn2graph erb eu-ar
    eu-elfcmp eu-elflint eu-nm eu-readelf eu-size eu-strings eu-strip eu-unstrip
    execstack expand factor fastjar fax2tiff fc-cache fc-list fc-match fc-query
    fc-scan fgconsole file flex flock floppy fmt fold font2c fonttosfnt
    foomatic-combo-xml foomatic-compiledb foomatic-configure foomatic-perl-data
    foomatic-ppd-options foomatic-ppd-to-xml foomatic-rip funzip g++ gcc gcj-dbtool
    gcore gdb gdk-pixbuf-query-loaders-32 genkey GET getcert getconf getent getfacl
    getfattr getkeycodes gettextize gettext.sh gfortran gif2tiff gij git git-shell
    git-upload-pack gjar gjarsigner gkeytool gorbd gpg2 gpg-agent gpgconf
    gpg-connect-agent gpg-error gpgkey2ssh gpg-zip grn groff groffer grog grolbp
    grolj4 gs gsbj gsdj gsdj500 gslj gslp gsnd gss-client gstack gst-feedback
    gst-feedback-0.10 gst-inspect gst-inspect-0.10 gst-launch gst-launch-0.10
    gst-xmlinspect gst-xmlinspect-0.10 gst-xmllaunch gst-xmllaunch-0.10 gzexe h2ph
    h2xs hal-disable-polling hal-is-caller-locked-out hal-lock hal-setup-keymap
    HEAD host hpftodit htdbm htdigest hugeadm hugectl hugeedit
    huge_page_setup_helper.py hunspell i686-redhat-linux-c++ i686-redhat-linux-g++
    i686-redhat-linux-gcc iecset ifnames indent indxbib info infocmp infokey install
    instmodsh intltool-extract intltoolize intltool-merge ipa-getcert ipcmk ipcs
    isosize isql iusql join jpegtran kadmin kbdrate kdestroy keyrand keyutil kinit
    klist krb5-config ktutil last lastcomm lastlog latrace lchfn lchsh ld ldb3del
    ldb3edit ldb3modify ldb3rename ldb3search libnetcfg libtool libtoolize lkbib
    logger logname look lookbib lpoptions ltrace lua luac lzmadec lzmainfo make man
    man2html mbchk mcookie memhog merge mesg migratepages migspeed mkfontscale
    mp2bug msgattrib msgcmp msgcomm msgen msgexec msgfilter msgfmt msghack msginit
    msgmerge msgunfmt msguniq msql2mysql myisamchk myisamlog myisampack mysql
    mysqlaccess mysqladmin mysqlbug mysqlcheck mysql_config mysqld_multi mysqld_safe
    mysql_fix_extensions mysqlhotcopy mysqlimport mysql_install_db
    mysql_secure_installation mysql_tzinfo_to_sql mysql_upgrade mysql_zap namei
    ncurses5-config neqn net nfs4_getfacl nfs4_setfacl ngettext nm nmblookup nroff
    nslookup numactl numademo objcopy ocs od odbc_config odbcinst opannotate
    opcontrol openssl ophelp opimport package-cleanup pagesize pal2rgb patch pax
    pdbedit pear pecl peekfd perf perl perl5.10.1 perlbug perldoc perlthanks perror
    pf2afm phar.phar php php-cgi pic pic2graph pinentry pinentry-curses pinfo pinky
    pk12util pkaction pkcheck pkexec pkg-config pl2pm pmap png2theora pod2html
    pod2latex pod2man pod2text pod2usage podchecker podselect POST post-grohtml ppdc
    ppdhtml ppdi ppdmerge ppdpo ppl-config ppm2tiff ptx pydoc python python2.6 qdbus
    qtconfig-qt4 ras2tiff rcs rcsclean rcsmerge rdjpgcom readelf recode-sr-latin
    refer rename replace repo-graph repomanage repoquery repo-rss report report-cli
    reporter-upload repotrack resizecons rgb2ycbcr rlog rpcclient rpcgen rpmbuild
    ruby runcon run-parts s2p sar sasl2-sample-client sclient script scriptreplay
    secon selfsign-getcert seq setfacl setfattr setkeycodes setleds setmetamode
    setup-nsssysinit.sh sharesec shred shuf signtool sim_client size smbclient
    smbcontrol smbget smbspool smbtree snmpbulkget snmpconf snmpdelta snmpget
    snmpgetnext snmptable snmptranslate snmptrap snmpusm soelim splain sqlite3 ssh
    ssh-agent ssh-keygen ssh-keyscan ssltap stap stap-merge stap-report stdbuf
    strace strings strip tabs tac tbl tfmtodit theora_encode theora_player
    theora_player.bin thumbnail tic tiff2rgba tiffcmp tiffcrop tiffdither tiffinfo
    tiffmedian tiffset tload toe tput tr trace-cmd troff tset tzselect ucs2any ul
    unexpand uniq unshare unzip urlgrabber uuclient xargs xdg-icon-resource xdg-mime
    xdg-open xdg-settings xgettext xmllint xml_merge xml_pp xml_spellcheck xxd xz
    xzdec yacc yes ypchfn ypchsh ypmatch yum yum-config-manager yum-debug-restore
    zcmp zforce zip zipcloak zipinfo zipnote  abrtd apachectl applygnupgdefaults
    apxs arpd atd atrun biosdecode brctl certmonger cifs.upcall console-kit-daemon
    cracklib-check cracklib-packer cracklib-unpacker create-cracklib-dict efibootmgr
    eject exportfs filefrag foomatic-extract-text foomatic-fix-xml
    foomatic-getpjloptions foomatic-kitload getcap getenforce getsebool
    glibc_post_upgrade.i686 groupdel groupmems groupmod grpck gss_destroy_creds hald
    htcacheclean httpd httxt2dbm ipa-client-install ipa-getkeytab ipa-join irqbalance
    lchage ldattach lgroupdel lgroupmod logrotate lokkit lpadmin lpinfo luserdel
    matahari-brokerd matahari-dbus-hostd matahari-qmf-hostd matahari-qmf-sysconfigd
    mklost+found mksock mtr ntpd ntpdc ntp-keygen ntpq open_init_pty pethtool
    pifconfig plymouth-set-default-theme postalias postconf postdrop postfix
    postkick postlock postlog postmap postmulti postqueue restorecond rotatelogs
    rpc.gssd rpcinfo rpc.nfsd rtacct run_init sa sasl2-shared-mechlist saslauthd
    selinuxdefcon selinuxenabled setcap setenforce setsebool setup smartctl smartd
    sm-notify smtp-sink smtp-source snmpd snmptrapd sosreport ss sshd sssd
    sys-unconfig tickadj togglesebool try-from tunelp userdel userhelper usernetctl
    ypbind yppoll yum-complete-transaction yumdb zic
    accept accton adduser alsactl arping authconfig authconfig-tui cupsdisable cupsenable
    cupsreject ethtool hwclock load_policy lpc lsusb matchpathcon mkdict packer ping6
    pm-hibernate pm-suspend pm-suspend-hybrid reject sendmail system-config-network-cmd
    system-config-network-tui tracepath tracepath6 update-alternatives vigr
    )

    PREDEFINED_TYPES = %w(
      char varchar varchar2 enum binary text tinytext mediumtext
      longtext blob tinyblob mediumblob longblob timestamp
      date time datetime year double decimal float int
      integer tinyint mediumint bigint smallint unsigned bit
      bool boolean hex bin oct
    )

    PREDEFINED_FUNCTIONS = %w( sum cast substring abs pi count min max avg now )

    DIRECTIVES = %w(
      auto_increment unique default charset initially deferred
      deferrable cascade immediate read write asc desc after
      primary foreign return engine
    )

    PREDEFINED_CONSTANTS = %w( null true false )

    IDENT_KIND = WordList::CaseIgnoring.new(:ident).
      add(KEYWORDS, :keyword).
      add(OBJECTS, :type).
      add(COMMANDS, :class).
      add(PREDEFINED_TYPES, :predefined_type).
      add(PREDEFINED_CONSTANTS, :predefined_constant).
      add(PREDEFINED_FUNCTIONS, :predefined).
      add(DIRECTIVES, :directive)

    ESCAPE = / [rbfntv\n\\\/'"] | x[a-fA-F0-9]{1,2} | [0-7]{1,3} | . /mx
    UNICODE_ESCAPE =  / u[a-fA-F0-9]{4} | U[a-fA-F0-9]{8} /x

    STRING_PREFIXES = /[xnb]|_\w+/i

    def scan_tokens encoder, options

      state = :initial
      string_type = nil
      string_content = ''
      name_expected = false

      until eos?

        if state == :initial

          if match = scan(/ \s+ | \\\n /x)
            encoder.text_token match, :space

          elsif match = scan(/(?:--\s?|#).*/)
            encoder.text_token match, :comment

          elsif match = scan(%r( /\* (!)? (?: .*? \*/ | .* ) )mx)
            encoder.text_token match, self[1] ? :directive : :comment

          elsif match = scan(/ [*\/=<>:;,!&^|()\[\]{}~%] | [-+\.](?!\d) /x)
            name_expected = true if match == '.' && check(/[A-Za-z_]/)
            encoder.text_token match, :operator

          elsif match = scan(/(#{STRING_PREFIXES})?([`"'])/o)
            prefix = self[1]
            string_type = self[2]
            encoder.begin_group :string
            encoder.text_token prefix, :modifier if prefix
            match = string_type
            state = :string
            encoder.text_token match, :delimiter

          elsif match = scan(/ \$? [A-Za-z_][A-Za-z_0-9]* /x)
            encoder.text_token match, name_expected ? :ident : (match[0] == ?$ ? :variable : IDENT_KIND[match])
            name_expected = false

          elsif match = scan(/0[xX][0-9A-Fa-f]+/)
            encoder.text_token match, :hex

          elsif match = scan(/0[0-7]+(?![89.eEfF])/)
            encoder.text_token match, :octal

          elsif match = scan(/[-+]?(?>\d+)(?![.eEfF])/)
            encoder.text_token match, :integer

          elsif match = scan(/[-+]?(?:\d[fF]|\d*\.\d+(?:[eE][+-]?\d+)?|\d+[eE][+-]?\d+)/)
            encoder.text_token match, :float

          elsif match = scan(/\\N/)
            encoder.text_token match, :predefined_constant

          else
            encoder.text_token getch, :error

          end

        elsif state == :string
          if match = scan(/[^\\"'`]+/)
            string_content << match
            next
          elsif match = scan(/["'`]/)
            if string_type == match
              if peek(1) == string_type  # doubling means escape
                string_content << string_type << getch
                next
              end
              unless string_content.empty?
                encoder.text_token string_content, :content
                string_content = ''
              end
              encoder.text_token match, :delimiter
              encoder.end_group :string
              state = :initial
              string_type = nil
            else
              string_content << match
            end
          elsif match = scan(/ \\ (?: #{ESCAPE} | #{UNICODE_ESCAPE} ) /mox)
            unless string_content.empty?
              encoder.text_token string_content, :content
              string_content = ''
            end
            encoder.text_token match, :char
          elsif match = scan(/ \\ . /mox)
            string_content << match
            next
          elsif match = scan(/ \\ | $ /x)
            unless string_content.empty?
              encoder.text_token string_content, :content
              string_content = ''
            end
            encoder.text_token match, :error
            state = :initial
          else
            raise "else case \" reached; %p not handled." % peek(1), encoder
          end

        else
          raise 'else-case reached', encoder

        end

      end

      if state == :string
        encoder.end_group state
      end

      encoder

    end

  end

end end

3.
cd $RedmineDocumentRoot/vendor/gems/coderay-<version>/lib/coderay/helpers/

4. Edit file_types.rb. You are looking for the section that looks like this
    TypeFromExt = {
      'c'        => :c,
      'cfc'      => :xml,
      'cfm'      => :xml,
      'clj'      => :clojure,
      'css'      => :css,
      'diff'     => :diff,
      'dpr'      => :delphi,
      'gemspec'  => :ruby,
      ...

and you want to add

      'bash'        => :bash,

So in the end it should look like this

    TypeFromExt = {
      'bash'        => :bash,
      'c'        => :c,
      'cfc'      => :xml,
      'cfm'      => :xml,
      'clj'      => :clojure,
      'css'      => :css,
      'diff'     => :diff,
      'dpr'      => :delphi,
      'gemspec'  => :ruby,
      ...

5. Restart your web server (in my case it was apache and I could run

/etc/init.d/httpd restart

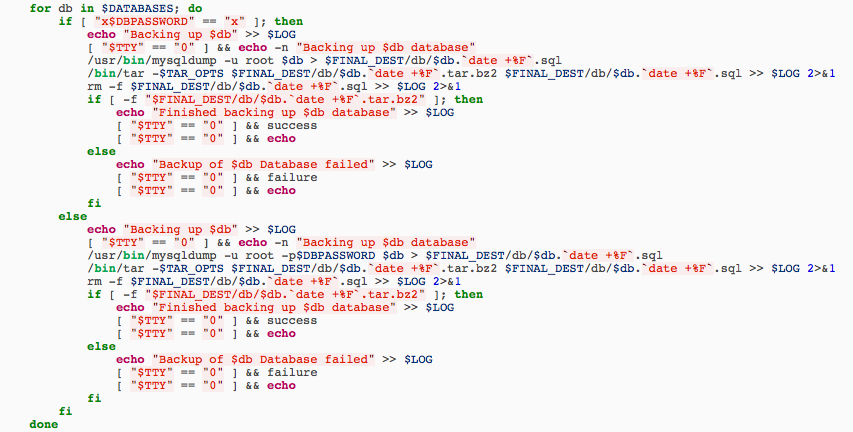

That's it! Afterwards I had a really really nice syntax highlighting for BASH. Attached is a screenshot of the BASH syntax highlighting in action.

Cheers, Hope you all enjoy this. And if anyone cares to add on to this, definitely do so and upload you changes here so that we all can relish in the changes.

ScreenShot.png - ScreenShot of BASH Syntax Highlighting (120 KB)

Replies (4)

RE: BASH Syntax Highlighting - Added by @ go2null about 7 years ago

Found this in Google - http://rubygems.org/gems/coderay_bash.

Haven't tried it yet.

RE: BASH Syntax Highlighting - Added by luigifab ! almost 3 years ago

That's true, you can only install coderay_bash, without change any file.

RE: BASH Syntax Highlighting - Added by Go MAEDA almost 3 years ago

I have submitted a patch to support 100+ languages syntax highlighting: #24681
The patch replaces CodeRay with Rouge.

RE: BASH Syntax Highlighting - Added by Go MAEDA about 1 year ago

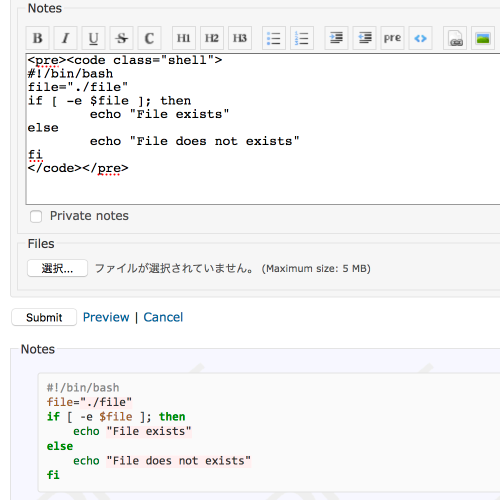

Since Rouge has been integrated with Redmine 4.0.0, it supports highlighting of Bash. Please see #24681 and RedmineCodeHighlightingLanguages for details.

(1-4/4)
