1. Redmine AI Assistant

AI-powered intelligent assistant plugin for Redmine, providing floating chat widget, automated work report generation, and multi-provider AI support.

1. Features

- Floating Chat Widget: A draggable AI chat bubble in the bottom-right corner of every page, supporting natural language conversations
- Work Report Generation: One-click generation of daily/weekly/monthly reports based on user activity data (time entries, issue assignments, status changes, comments, wiki updates)
- Multi-Provider AI Support: Supports multiple AI service providers with a unified interface, compatible with OpenAI-style APIs
- Read-Only Guard Prompt: Automatically restricts AI to analysis-only mode when business data is involved, preventing accidental or malicious data modification suggestions
- Custom System Prompt: Administrators can define system-level prompt constraints via plugin settings
- Customizable Icon: Supports custom floating icon images (PNG/JPG/GIF/APNG/SVG), with auto-play for animated formats
- Conversation History: Persistent chat history with configurable context window size
- Smart Data Injection: Automatically detects task/report-related queries and injects real Redmine issue data as context
- Issue Hyperlinks: All issue references in reports and chat are rendered as clickable links that navigate directly to the issue detail page
- Version & Progress Tracking: Reports include version grouping analysis, progress percentages, due date alerts, and overdue issue detection
- Dynamic System Name: Uses the actual application name from `Setting.app_title` instead of hardcoded "Redmine"

1. Requirements

- Redmine >= 6.1.0
- Ruby >= 3.2.0
- At least one AI service provider (OpenAI-compatible API)

1. Installation

1. Copy the plugin directory into `plugins/redmine_ai_assistant`

2. Run database migrations:

```bash
bundle exec rake redmine:plugins:migrate RAILS_ENV=production
```

3. Restart Redmine

4. Go to Administration → Plugins → Redmine AI Assistant → Configure to enable the plugin

1. Configuration

1. Plugin Settings

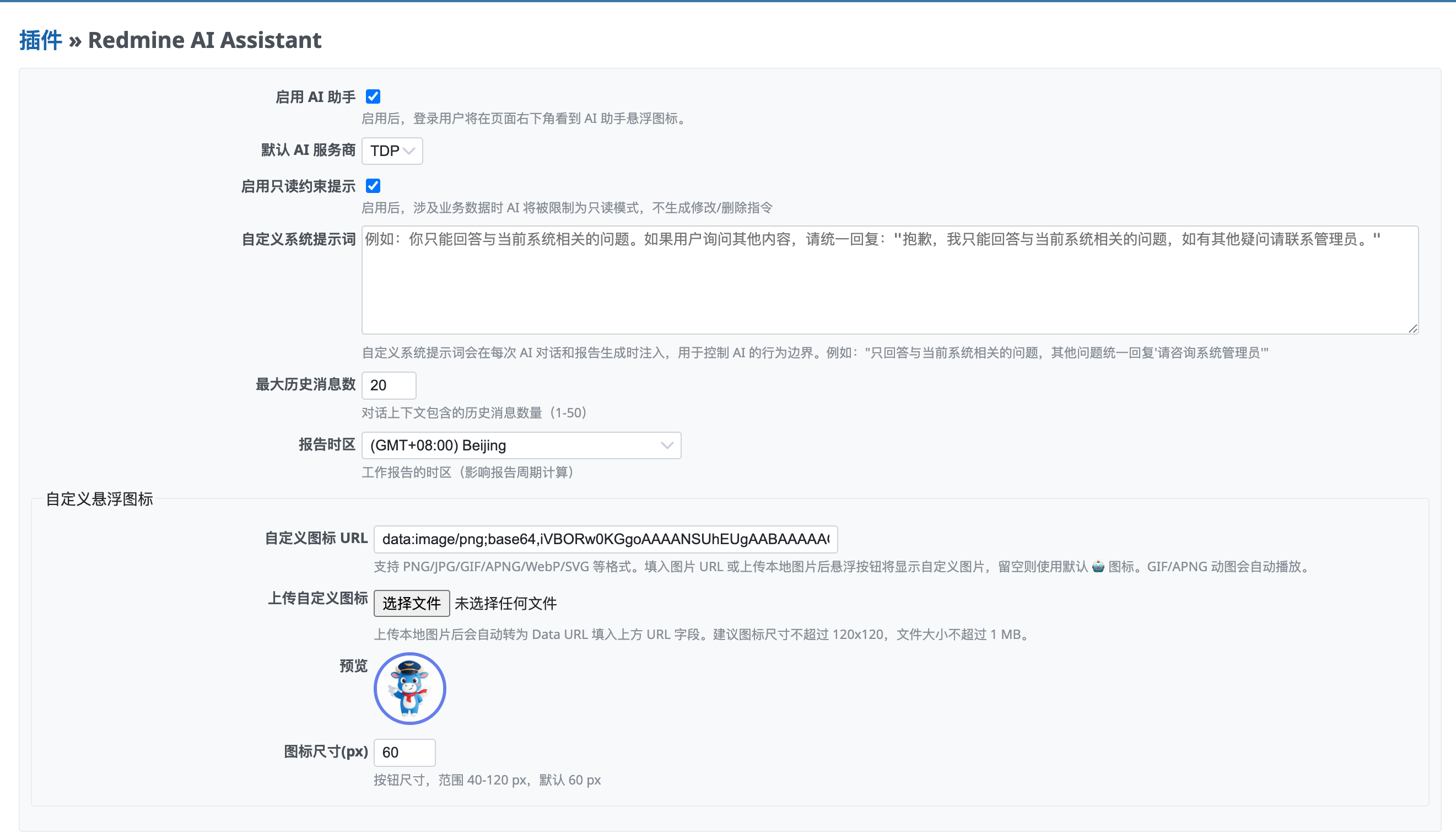

Go to Administration → Plugins → Redmine AI Assistant → Configure:

Setting	Default	Description
---	---	---
Enable AI Assistant	Off	Enables the floating chat widget for logged-in users
Default AI Provider	(None)	The default AI service provider for chat and reports
Enable Read-Only Guard Prompt	On	Restricts AI to analysis-only mode when business data is involved
Custom System Prompt	(Empty)	Custom prompt injected before every AI call to control behavior
Max History Messages	20	Number of previous messages to include in conversation context (1-50)
Report Timezone	(Empty)	Timezone for report period calculation
Custom Pet Image URL	(Empty)	Custom floating icon image URL (supports PNG/JPG/GIF/APNG/WebP/SVG)
Icon Size	60	Floating button size in pixels (40-120)

1. AI Service Providers

Go to Administration → AI Service Providers to configure AI backends.

Provider Types:
- `tdp`: TDP platform integrated provider
- `custom`: Any OpenAI-compatible API (e.g., OpenAI, Ollama, vLLM, local LLM)

Required Fields:
- Name: Display name
- Slug: Unique identifier (lowercase letters, digits, hyphens, underscores)
- Provider Type: `tdp` or `custom`
- API URL: Full base URL (e.g., `https://api.openai.com/v1`)
- API Key: Authentication key (encrypted at rest)
- Default Model: Model name (e.g., `gpt-4o-mini`)

Optional Fields:
- Available Models: JSON array of model names — use the "Auto Fetch" button to retrieve from the API
- Extra Settings: JSON object for provider-specific parameters (e.g., top_p, frequency_penalty)

1. Permissions

Three permissions control access:

Permission	Access	Description
---	---	---
Manage AI Providers	Admin only	CRUD and enable/disable AI providers
Use AI Chat	Logged-in users	Access the floating chat widget
Generate AI Reports	Logged-in users	Generate work reports

1. Usage

1. AI Chat

1. Click the floating icon in the bottom-right corner to open the chat panel
2. Type questions about your projects, tasks, or time entries
3. The assistant will automatically pull relevant Redmine data when you ask task-related questions
4. Use the quick-action buttons for one-click task summary or recent activity

Trigger keywords (at least 2 needed to trigger data injection): task, issue, status, priority, progress, version, due date, overdue, report, summary, today, week, month, 任务, 项目, etc.

1. Work Reports

Reports are generated via API endpoints or triggered from the chat widget. The generator collects:

- Time Entries: Hours logged with project, issue, and activity details
- Issues Assigned: New tasks assigned during the report period
- Issue Change History: Full timeline of status/priority/assignee changes during the period
- Issues Closed: Tasks completed during the period
- Status Summary: Distribution of open issues by status
- Overdue Issues: Tasks past their due date but not yet closed
- Comments: Notes written on issues, wiki pages, documents
- Wiki Updates: Pages edited during the period

Reports are generated in Markdown format with structured sections, summarized via AI for readability.

1. Architecture

```
redmine_ai_assistant/
├── init.rb # Plugin registration, permissions, settings
├── config/
│ ├── routes.rb # API routes
│ └── locales/ # i18n (zh.yml, en.yml)
├── app/
│ ├── controllers/ai_assistant/
│ │ ├── chat_controller.rb # Chat send/history/clear APIs
│ │ ├── reports_controller.rb # Report generation APIs
│ │ └── providers_controller.rb # Provider CRUD (admin)
│ ├── models/ai_assistant/
│ │ ├── ai_provider.rb # AI service provider model
│ │ └── ai_message.rb # Chat message persistence
│ └── views/ai_assistant/
│ ├── chat/_widget.html.erb # Floating widget HTML
│ ├── chat/_head_tags.html.erb # CSS/JS resource injection
│ └── providers/ # Provider management views
├── assets/
│ └── {javascripts,stylesheets}/ai_assistant/
│ ├── chat_widget_controller.js # ~770 lines, vanilla JS chat widget
│ └── chat_widget.css # ~725 lines, styled chat UI
├── lib/ai_assistant/
│ ├── ai_client.rb # Unified OpenAI-compatible API client
│ ├── guard_prompt.rb # Read-only guard prompt injection
│ ├── report_generator.rb # Work report data collection & AI generation (~580 lines)
│ └── hooks.rb # Redmine view hooks
└── db/migrate/ # Database schema migrations
```

1. Key Components

`ai_client.rb` — Multi-provider HTTP client supporting all OpenAI-compatible APIs. Handles request building, timeout management, response parsing, error classification, and post-processing (including automatic issue ID linkification).

`guard_prompt.rb` — When business data keywords are detected in the conversation, injects a read-only constraint into the system prompt. Uses `Setting.app_title` for dynamic system name.

`report_generator.rb` — Core report engine:
- Computes report date range based on type (daily/weekly/monthly) and optional period offset
- Queries user's time entries, assigned issues, change history, closed issues, comments, wiki updates
- Status Summary: Groups open issues by status with counts and percentages
- Overdue Detection: Finds issues past `due_date` but not yet closed
- Version Grouping: Includes `fixed_version` name in issue data for version-level analysis
- Formats all data into structured Markdown for AI consumption
- All issue IDs are rendered as clickable Markdown links (`[#ID](url)`)

`chat_widget_controller.js` — Pure vanilla JavaScript chat widget:
- Draggable floating button with open/close toggle
- Markdown rendering with syntax highlighting, table support, and link handling
- Quick question templates for common queries
- Conversation history loading and new conversation controls
- Turbo/Turbolinks compatibility with proper event listener cleanup
- Debounce protection against duplicate initialization from multiple page load events

1. API Reference

All API endpoints require authentication.

1. Chat

Method	Endpoint	Description
---	---	---
POST	`/ai_assistant/chat/send_message`	Send a message and get AI response
GET	`/ai_assistant/chat/history`	Get conversation history
GET	`/ai_assistant/chat/clear`	Clear a conversation

Send Message request body:
```json {
"message": "What are my tasks today?",
"conversation_id": "optional-conversation-uuid"
}
```

Send Message response:
```json {
"conversation_id": "uuid",
"message": {
"id": 42,
"role": "assistant",
"content": "Markdown formatted response...",
"tokens_used": 1234
}
}
```

1. Reports

Method	Endpoint	Description
---	---	---
GET	`/ai_assistant/reports/daily`	Generate today's daily report
GET	`/ai_assistant/reports/weekly`	Generate this week's weekly report
GET	`/ai_assistant/reports/monthly`	Generate this month's monthly report
POST	`/ai_assistant/reports/generate`	Generate a custom report

Generate Report request body:
```json {
"report_type": "weekly",
"period_offset": "-1",
"provider_id": "optional-provider-id"
}
```

`period_offset`: `0` = current period, `-1` = previous period (yesterday/last week/last month).

1. Database Schema

1. `ai_providers`

Column	Type	Description
---	---	---
`name`	string	Provider display name
`slug`	string	Unique identifier
`provider_type`	string	`tdp` or `custom`
`api_url`	string	API base URL
`api_key`	text	Encrypted API key
`default_model`	string	Default model name
`available_models`	text	JSON array of model names
`settings`	text	JSON extra configuration
`is_enabled`	boolean	Enabled status (default true)
`is_builtin`	boolean	Whether built-in (default false)
`position`	integer	Sort order (default 0)

1. `ai_messages`

Column	Type	Description
---	---	---
`user_id`	integer	User reference
`ai_provider_id`	integer	AI provider reference
`conversation_id`	string	Conversation group ID
`role`	string	`user` or `assistant`
`content`	text	Message content
`model`	string	AI model used
`tokens_used`	integer	Token consumption
`report_type`	string	`daily`, `weekly`, or `monthly` (for reports)
`ai_provider`	string	Provider name snapshot

1. Development

1. Adding a New AI Provider

1. Go to Administration → AI Service Providers → New Provider
2. Fill in the API URL and key for any OpenAI-compatible service
3. Set as default in Plugin Settings if desired

1. Extending Report Data

The `ReportGenerator#collect_data` method returns a hash of all collected data. To add new data sources:

1. Add a new `fetch_*` method in `report_generator.rb`
2. Include the new key in `collect_data`
3. Add the corresponding section in `build_user_prompt`
4. Update `build_system_prompt` with guidelines for the new data

1. Customizing the System Prompt

Use the Custom System Prompt setting in plugin configuration to inject custom rules. This prompt is prepended to every AI call (both chat and reports), allowing you to:
- Restrict AI to answer only within certain domains
- Define output format conventions
- Enforce company-specific policies
