Plugins Directory » Redmine Docson

Author: Michele Tessaro
Website: https://github.com/mikitex70/redmine_docson
Code repository: https://github.com/mikitex70/redmine_docson.git
Registered on: 2016-08-11 (over 7 years ago)
Current version: 0.1.2
Compatible with: Redmine 3.4.x, 3.3.x, 3.2.x, 3.1.x, 3.0.x
User ratings:   (0)

Docson is a tool that can render JSON schemas in a more human readable format, embedded in web pages.

This plugin will allow adding Docson widgets into Redmine wiki pages and issues.

Example JSON from Docson :

Installation notes

Install redmine_docson plugin:


cd $REDMINE_HOME/plugins
git clone https://github.com/mikitex70/redmine_docson.git

Restart Redmine to load the new plugin

To install docson embedded into Redmine, download docson into $REDMINE_HOME/public directory. For example:


cd $REDMINE_HOME
git clone https://github.com/lbovet/docson.git

Be warned: if docson is embedded with Redmine, JSON schemas must be served by Redmine to avoid cross-origin issues. In this case create also a folder for JSON schemas:


mkdir $REDMINE_HOME/public/jsonSchemas

Next go to the plugin settings page and set the URL for Docson and the root path of the JSON schemas:

  • for the Docson installation URL use a full URL (for example http://myserver:port/docson) or an URL relative to Redmine (example: /docson), more simple if Docson installation is embedded.
  • for the JSON schemas base path use a path relative to the Docson URL (example: /jsonSchemas). Using a full URL is allowed, but schemas cannot be loaded from a server different from Docson server if they are not served following CORS specifications.

For more details check the homepage.

Changelog

0.1.2 (2017-07-16)

Compatible with Redmine 3.4.x, 3.3.x, 3.2.x, 3.1.x, 3.0.x.

Tested with Redmine 3.4.0.

0.1.1 (2016-09-10)

Compatible with Redmine 3.3.x, 3.2.x, 3.1.x, 3.0.x, 2.6.x.

0.1.0 (2016-07-09)

Compatible with Redmine 3.2.x, 3.1.x, 3.0.x.

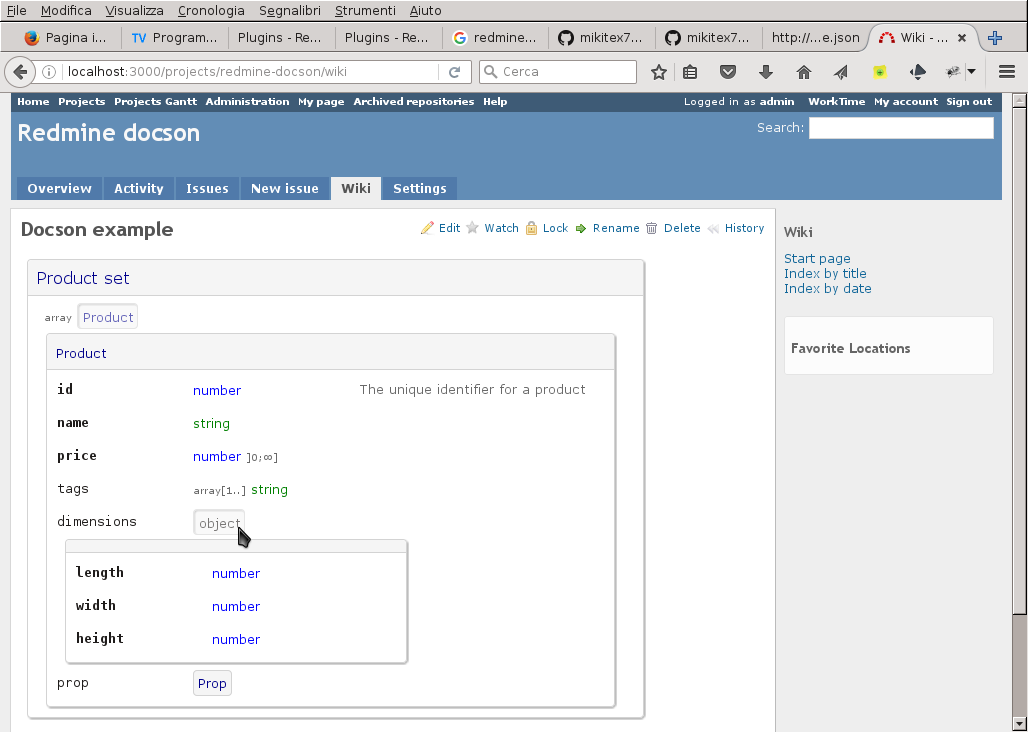

redmine_docson3.png (63.4 KB) redmine_docson3.png Third Level Michele Tessaro, 2016-08-11 20:13

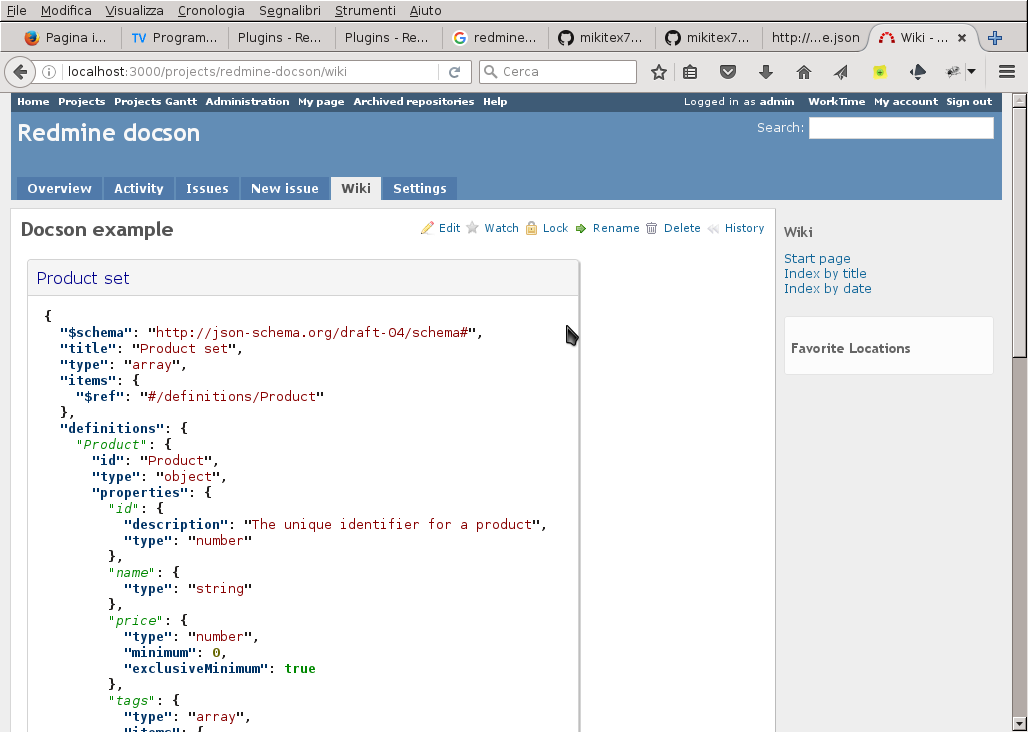

redmine_docson4.png (76.1 KB) redmine_docson4.png JSON schema source Michele Tessaro, 2016-08-11 20:13
