Defect #19248

End markers in gantt PDF are misaligned

Added by Binhai Liu over 5 years ago. Updated 7 months ago.

Status:ClosedStart date:
Priority:NormalDue date:
Assignee:Go MAEDA% Done:

0%

Category:Gantt
Target version:4.0.7
Resolution:Fixed Affected version:3.0.0

Description

the line end's mark appears between the end date -1 and the end day,
it's better to display it between the end day and the end date + 1.

by modify ../redmine/helpers/gantt.rb

def pdf_task

Environment:
Redmine version 3.0.0.stable





19248.patch Magnifier (1.31 KB) Yuichi HARADA, 2020-03-18 02:13

Associated revisions

Revision 19595
Added by Go MAEDA 7 months ago

Fix that end markers in gantt PDF are misaligned (#19248).

Patch by Yuichi HARADA.

Revision 19596
Added by Go MAEDA 7 months ago

Merged r19595 from trunk to 4.1-stable (#19248).

Revision 19597
Added by Go MAEDA 7 months ago

Merged r19595 from trunk to 4.0-stable (#19248).

History

#1 Updated by Yuichi HARADA 7 months ago

I confirmed that the display position of the end mark was shifted. In addition, the display position of the end mark of the PNG image was shifted similarly.

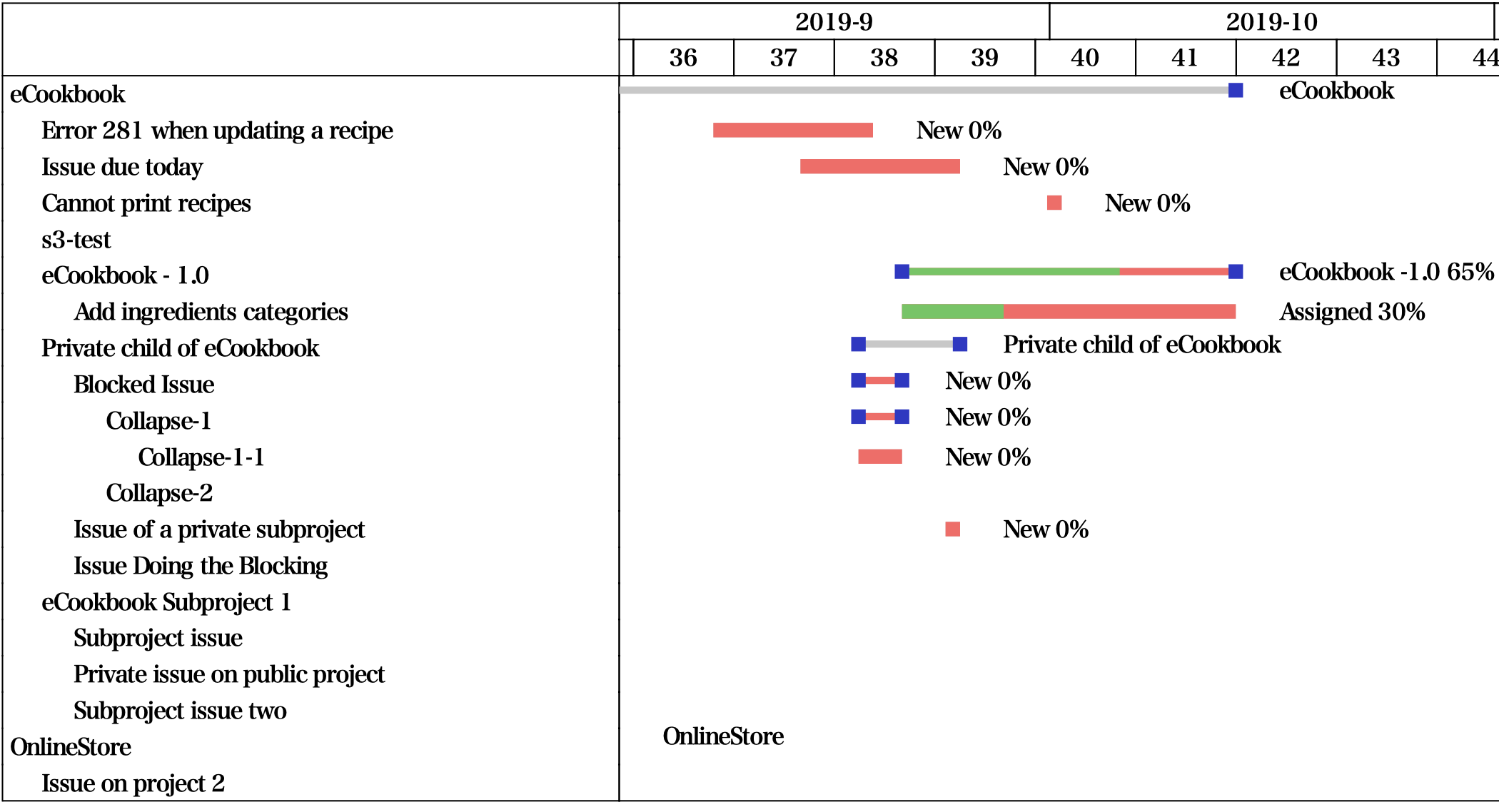

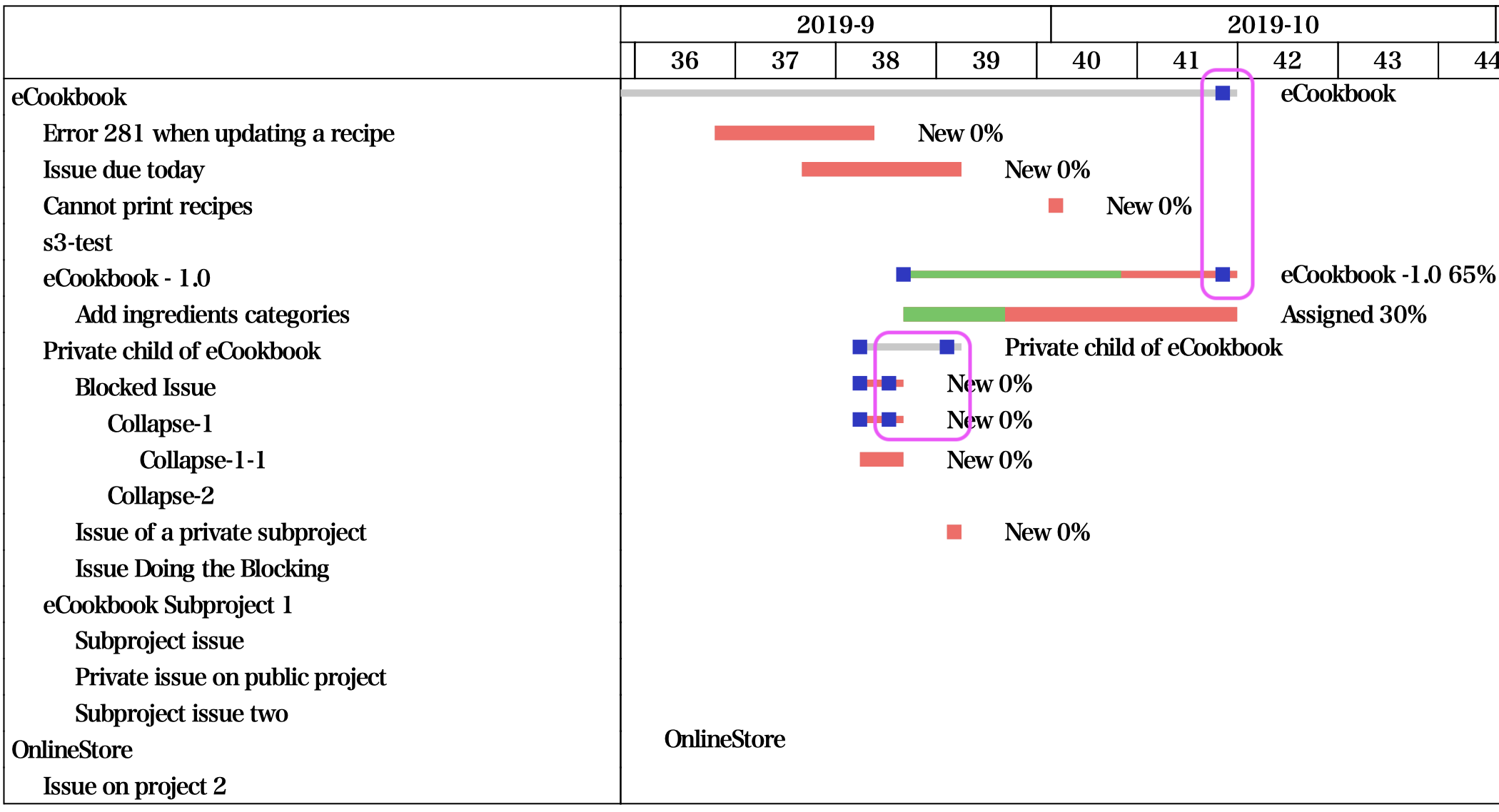

expect actual

Improved with the following patch.

diff --git a/lib/redmine/helpers/gantt.rb b/lib/redmine/helpers/gantt.rb
index 285eb66a0..406a818e1 100644
--- a/lib/redmine/helpers/gantt.rb
+++ b/lib/redmine/helpers/gantt.rb
@@ -631,7 +631,7 @@ module Redmine
             coords[:bar_start] = 0
           end
           if end_date < self.date_to
-            coords[:end] = end_date - self.date_from
+            coords[:end] = end_date - self.date_from + 1
             coords[:bar_end] = end_date - self.date_from + 1
           else
             coords[:bar_end] = self.date_to - self.date_from + 1
@@ -897,7 +897,7 @@ module Redmine
           if coords[:end]
             style = +""
             style << "top:#{params[:top]}px;"
-            style << "left:#{coords[:end] + params[:zoom]}px;"
+            style << "left:#{coords[:end]}px;"
             style << "width:15px;"
             output << view.content_tag(:div, '&nbsp;'.html_safe,
                                        :style => style,
@@ -1031,7 +1031,7 @@ module Redmine
             ])
           end
           if coords[:end]
-            x = params[:subject_width] + coords[:end] + params[:zoom]
+            x = params[:subject_width] + coords[:end]
             y = params[:top] - height / 2
             params[:image].fill('blue')
             params[:image].draw('polygon %d,%d %d,%d %d,%d %d,%d' % [

#2 Updated by Go MAEDA 7 months ago

  • Target version set to 4.1.1

Setting the target version to 4.1.1.

#3 Updated by Go MAEDA 7 months ago

  • Subject changed from gantt's pdf line end mark's position to End markers in gantt PDF are misaligned
  • Status changed from New to Closed
  • Assignee set to Go MAEDA
  • Priority changed from Low to Normal
  • Target version changed from 4.1.1 to 4.0.7
  • Resolution set to Fixed

Committed the fix. Thank you.
