Defect #33673

Calendar View / The right side of the tooltip is cut off

Added by Akiko Takano 11 days ago. Updated 11 days ago.

Status:ConfirmedStart date:
Priority:NormalDue date:
Assignee:-% Done:

0%

Category:Calendar
Target version:Candidate for next minor release
Resolution: Affected version:

Description

Summary

The right side of the tooltip is cut off at the Calendar View.

Description

In normal mode, the right side of the issue's tooltip is clipped.
The contents of the tooltip are hidden under the sidebar.

In responsive mode, not only the right side of the issue but also the issues on Friday are the same.

Environment

Environment:
  Redmine version                4.1.1.stable.19819
  Ruby version                   2.5.3-p105 (2018-10-18) [x86_64-darwin18]
  Rails version                  5.2.4.2
  Environment                    development
  Database adapter               SQLite
  Mailer queue                   ActiveJob::QueueAdapters::AsyncAdapter

The trunk is the same situation.

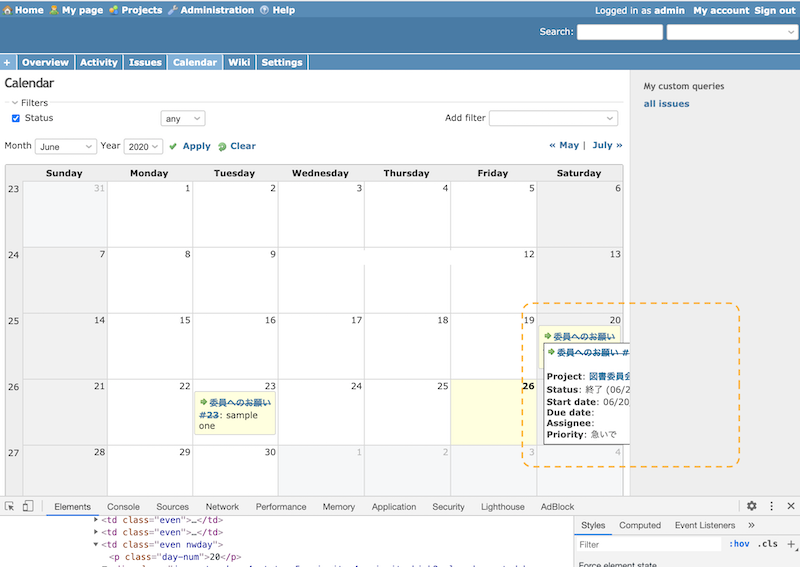

Visual Proof / Screenshot

Expected Results

The tooltip is displayed without cutting off.

Actual Results

Cut off because of the content's overflow.

Workaround

Modify the application.css and responsive.css

application.css

Index: public/stylesheets/application.css
===================================================================
--- public/stylesheets/application.css    (revision 19834)
+++ public/stylesheets/application.css    (working copy)
@@ -109,6 +109,7 @@
 #content { flex-grow: 1; background-color: #fff; margin: 0px; padding: 6px 10px 10px 10px; overflow-x: auto;}
 html>body #content { min-height: 600px; }
 * html body #content { height: 600px; } /* IE */
+html>body.controller-calendars.action-show #content { overflow-x: visible; }

 #main.nosidebar #sidebar{ display: none; }

I'm not sure if the changing of overflow-x has some unexpected effects, so I specify more specific conditions.
(Calendar view only)

responsive.css

Index: public/stylesheets/responsive.css
===================================================================
--- public/stylesheets/responsive.css    (revision 19834)
+++ public/stylesheets/responsive.css    (working copy)
@@ -847,6 +847,9 @@
     margin-left: 0;
     width: 100%;
   }
+
+  /* calendar tooltip */
+  table.cal td:not(.week-number):nth-child(n+5) span.tip { right: 10px; }
 }

 @media all and (max-width: 599px) {

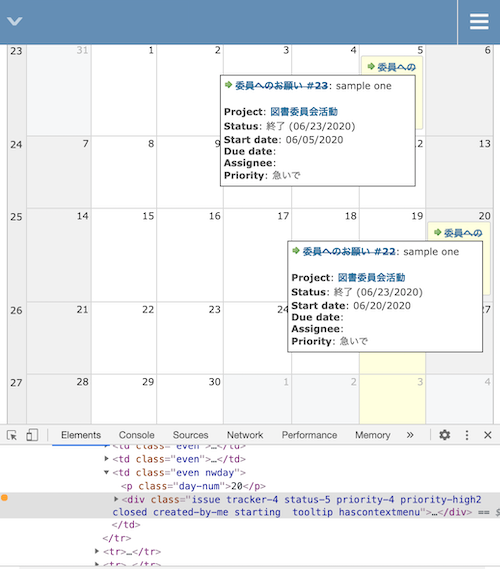

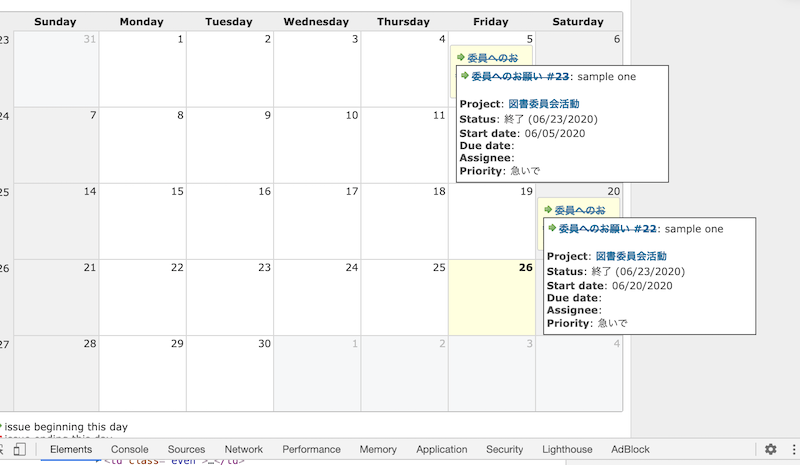

Result




History

#1 Updated by Go MAEDA 11 days ago

  • Tracker changed from Patch to Defect
  • Subject changed from Calendar View / The right side of the tooltip is cut off. to Calendar View / The right side of the tooltip is cut off
  • Status changed from New to Confirmed
  • Target version set to Candidate for next minor release
