Defect #42774

closed

Linked content is hidden under the #sticky-issue-header when using anchor links

Added by Mizuki ISHIKAWA about 1 month ago. Updated about 1 month ago.

Status:
Closed
Priority:
Normal
Assignee:
Category:
UI
Target version:
-
Start date:
Due date:
% Done:

0%

Estimated time:
Resolution:
Fixed
Affected version:

Description

Related: Feature #42684: Add a sticky header to keep the issue subject visible on scroll

When clicking anchor links such as #note-n, #change-n, or Wiki-style headings on an issue page, the browser scrolls the anchor element to the top of the viewport.
However, on issue view pages, the anchor element ends up hidden behind the sticky issue header, making it look as if the page didn’t scroll to the intended target.

The following CSS diff adjusts the position of anchor elements during scrolling by adding a scroll-margin-top.

diff --git a/app/assets/stylesheets/application.css b/app/assets/stylesheets/application.css
index 6571c05d1..5eccaacb4 100644
--- a/app/assets/stylesheets/application.css
+++ b/app/assets/stylesheets/application.css
@@ -795,6 +795,12 @@ div.journal span.update-info {color: #666; font-size: 0.9em;}

 #history div:target h4.note-header {background-color:#DDEEFF;}
 #history p.nodata {display: none;}
+/* Prevent content from being hidden behind a #sticky-issue-header when scrolling via anchor links. */
+.controller-issues.action-show div.wiki a[name],
+.controller-issues.action-show #history div[id^="note-"],
+.controller-issues.action-show #history div[id^="change-"] {
+  scroll-margin-top: 50px;
+}

 div#activity dl, #search-results { margin-left: 2em; }
 div#activity dd, #search-results dd { margin-bottom: 1em; padding-left: 22px; font-size: 0.8125rem;}

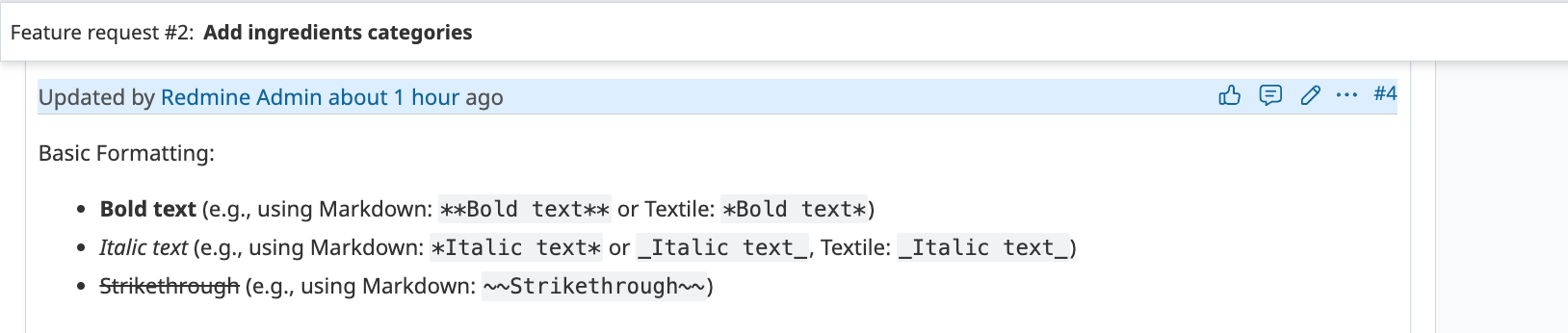

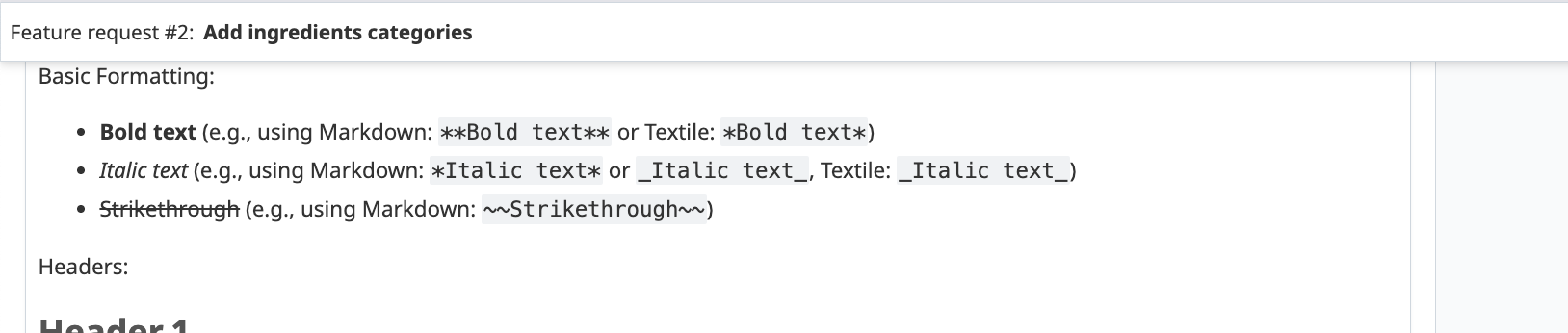

Before change After change

Files

Actions #1

Updated by Go MAEDA about 1 month ago

  • Status changed from New to Confirmed
  • Assignee set to Go MAEDA
Actions #2

Updated by Go MAEDA about 1 month ago

  • Status changed from Confirmed to Closed
  • Resolution set to Fixed

Committed the fix as a part of #42684. Thank you.

Actions #3

Updated by Mizuki ISHIKAWA about 1 month ago

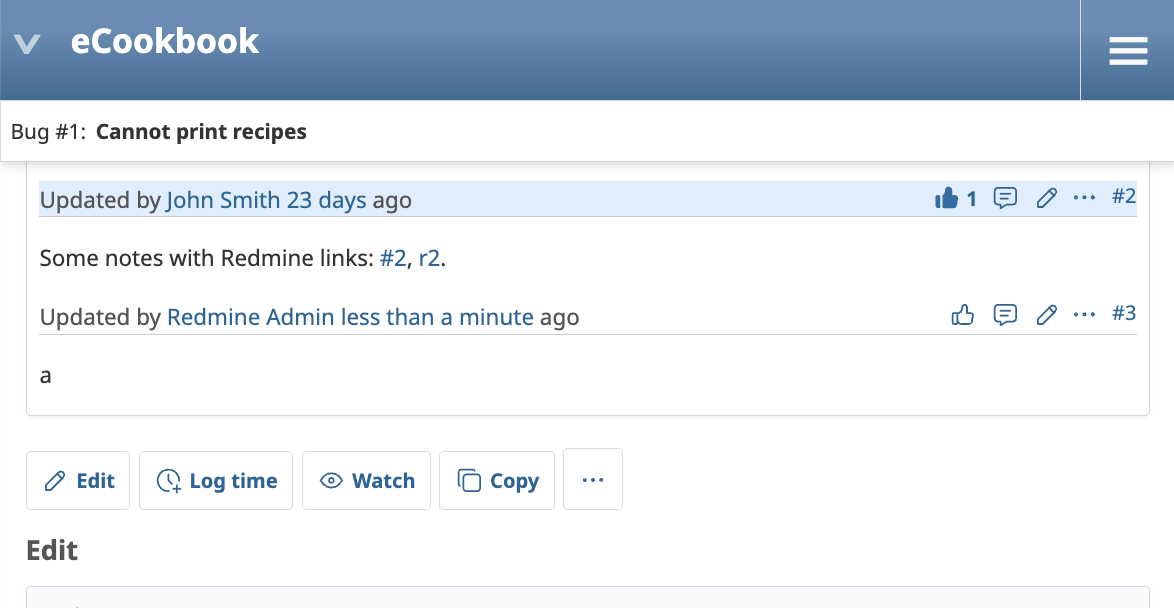

It turned out that the problem wasn't fully resolved, because when the screen width is narrow, not only #sticky-issue-header but also project-jump becomes visible.
The following change fixes the issue in responsive mode as well.

diff --git a/app/assets/stylesheets/responsive.css b/app/assets/stylesheets/responsive.css
index 3a2eb46bb..867c41e9b 100644
--- a/app/assets/stylesheets/responsive.css
+++ b/app/assets/stylesheets/responsive.css
@@ -854,6 +854,13 @@
   div#sticky-issue-header {
     top: 64px;
   }
+
+  /* Prevent content from being hidden behind #sticky-issue-header and project-jump when scrolling via anchor links. */
+  .controller-issues.action-show div.wiki a[name],
+  .controller-issues.action-show #history div[id^="note-"],
+  .controller-issues.action-show #history div[id^="change-"] {
+    scroll-margin-top: 114px;
+  }
 }

 @media all and (max-width: 599px) {

Actions #4

Updated by Go MAEDA about 1 month ago

Mizuki ISHIKAWA wrote in #note-3:

It turned out that the problem wasn't fully resolved, because when the screen width is narrow, not only #sticky-issue-header but also project-jump becomes visible.

Committed the fix in r23808. Thank you.
