Feature #43355

closed

Add pagination support for members and groups management views

Added by Jan Catrysse 11 months ago. Updated 9 days ago.

Status:
Closed
Priority:
Normal
Category:
Groups
Target version:
Resolution:
Fixed

Description

When assigning hundreds (or thousands) of users to a project or a group, the project settings page and the groups page have become very slow.
I added pagination to optimize performance. Page load times with 1000+ users dropped from over 5 seconds to around 1.5 seconds.
This feature is based on the stable 5.1 branch.
I added tests.
However, a double-check wouldn’t hurt.


Files


Related issues

Related to Redmine - Feature #44458: Filter project members by name and role in project settingsNewMarius BĂLTEANUActions
Actions #1

Updated by Takenori TAKAKI about 2 months ago

Thank you for working on this.

The members and groups management pages really need pagination on large installations.

I rebased the change onto the current trunk (the attached patch is based on 5.1 and no longer applies cleanly) and split it into two commits — one for the project members list and one for the group users list. Apply 0001 first, then 0002.

Two notable differences from the original patch:

  • Members with several roles. `Member.sorted` orders by `roles.position` and therefore joins the roles table, so a member with N roles produces N rows. Applying `LIMIT`/`OFFSET` to that scope paginates join rows rather than members, which can list a member twice or skip one. In the members commit I collect the sorted, de-duplicated member ids first (keeping the lowest role position) and then load only that page, so pagination counts members. The group users list is ordered by name (no such join), so a plain `limit`/`offset` is fine there.
  • No controller concern. I kept the pagination in helpers (`paginate_members` / `paginate_group_users`), next to the existing `render_principals_for_new_members` / `render_principals_for_new_group_users`, instead of adding an `app/controllers/concerns` module (Redmine has no controller concerns yet). The partials are rendered from several controllers, so a helper keeps it in one place without duplicating across actions.

Like the original, a dedicated page parameter (`members_page` / `users_page`) is used so it doesn't clash with the `page` used by the add-member / add-user modals.

Tests pass on the current trunk.

Actions #2

Updated by Takenori TAKAKI 15 days ago

I found a few things to improve in the patches I attached in note-1, so here is an
updated pair, rebased onto the current trunk. Apply 0001 (project members list)
first, then 0002 (group users list).

Improvements over the previous patches:

  • Fixed the list showing "No data" when an out-of-range page is requested.
  • Added spacing between the list and the pagination controls, matching the other
    list screens.
  • Trimmed the code comments to the single non-obvious point.

Measured on the project members settings page of a project with ~4000 members
(development, SQLite, warm):

  • Members tab: ~4.9 s -> ~0.33 s
  • Members list partial alone: ~4.5 s -> ~0.04 s
  • 25 member rows loaded per page, no N+1.

These are development-mode figures; production is faster. Screenshots attached.

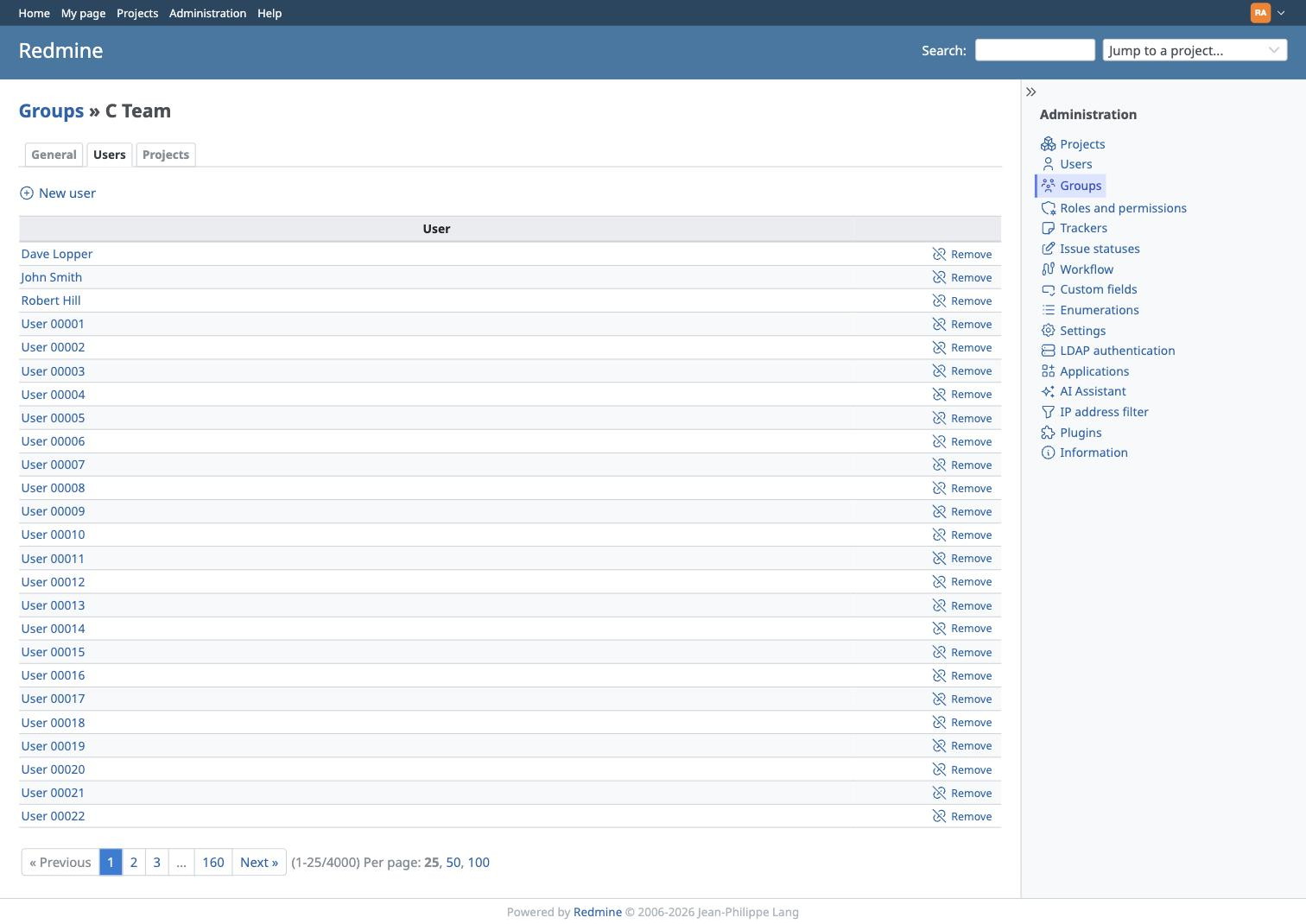

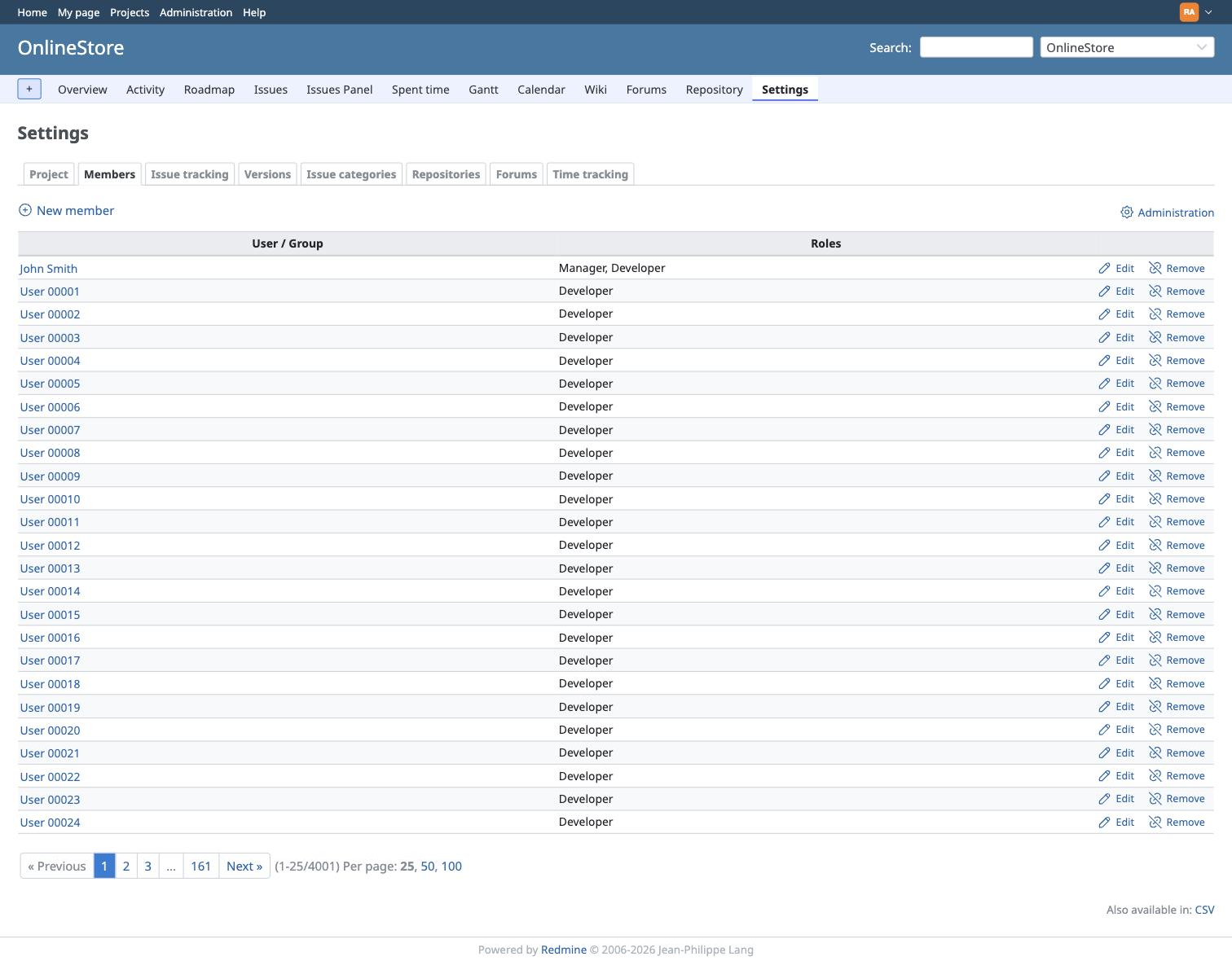

Project members list (Settings -> Members) Group users list (Groups -> Users)
Actions #3

Updated by Katsuya HIDAKA 14 days ago

Looks good to me.

I confirmed with a project that has about 4,000 members that the patch improves performance and that pagination works as expected on Chrome, Safari, and Firefox.

I also confirmed that all tests pass.

Actions #4

Updated by Marius BĂLTEANU 13 days ago

  • Assignee set to Marius BĂLTEANU
  • Target version set to 7.1.0
Actions #5

Updated by Marius BĂLTEANU 13 days ago

  • Status changed from New to Resolved
  • Resolution set to Fixed

Both patches committed, thanks for the nice work!

Actions #6

Updated by Marius BĂLTEANU 13 days ago

  • Status changed from Resolved to Closed
Actions #7

Updated by Marius BĂLTEANU 9 days ago

  • Related to Feature #44458: Filter project members by name and role in project settings added
Actions #8

Updated by Marius BĂLTEANU 9 days ago

In #44458, I've added a patch that allows to filter project members by name and role in project settings.
