Defect #30988

Preformatted text overflows the preview area

Added by Mizuki ISHIKAWA 6 months ago. Updated 5 months ago.

Status:ClosedStart date:
Priority:NormalDue date:
Assignee:Jean-Philippe Lang% Done:

0%

Category:UI
Target version:4.0.3
Resolution:Fixed Affected version:

Description

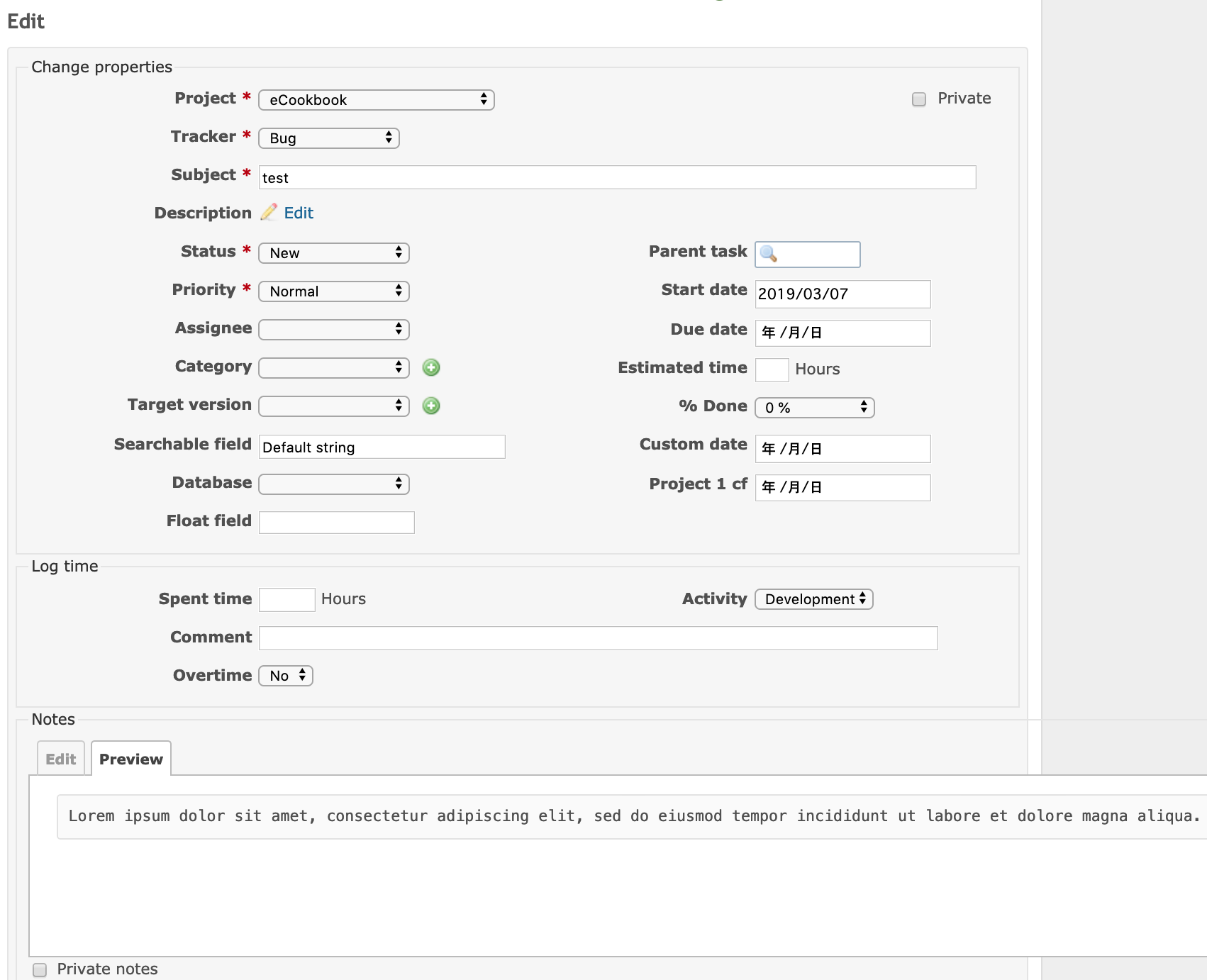

Like the image below, the pre tag overflows from the preview tab.




Related issues

Related to Redmine - Feature #27758: Adds preview option to the wiki toolbar Closed

Associated revisions

Revision 18014
Added by Jean-Philippe Lang 5 months ago

Preformatted text overflows the preview area (#30988).

Patch by Marius BALTEANU.

Revision 18018
Added by Jean-Philippe Lang 5 months ago

Merged r18014 to 4.0-stable (#30988).

History

#1 Updated by Mizuki ISHIKAWA 5 months ago

The following changes solves this problem.

diff --git a/app/views/issues/_edit.html.erb b/app/views/issues/_edit.html.erb
index 3afaee4ca9..1282c8113c 100644
--- a/app/views/issues/_edit.html.erb
+++ b/app/views/issues/_edit.html.erb
@@ -28,7 +28,7 @@
     </fieldset>
     <% end %>
     <% if @issue.notes_addable? %>
-      <fieldset><legend><%= l(:field_notes) %></legend>
+      <fieldset id='new-note'><legend><%= l(:field_notes) %></legend>
       <%= f.text_area :notes, :cols => 60, :rows => 10, :class => 'wiki-edit', :no_label => true %>
       <%= wikitoolbar_for 'issue_notes', preview_issue_path(:project_id => @project, :issue_id => @issue) %>

diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index 7dde120079..ad6383a427 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -536,6 +536,8 @@ div.journal h4 img.gravatar {margin-left:-32px;}

 #history div:target h4 {background-color:#DDEEFF;}

+#update fieldset#new-note { min-inline-size: auto; }
+
 div#activity dl, #search-results { margin-left: 2em; }
 div#activity dd, #search-results dd { margin-bottom: 1em; padding-left: 18px; font-size: 0.9em; }
 div#activity dt.me .time { border-bottom: 1px solid #999; }

#2 Updated by Go MAEDA 5 months ago

  • Target version set to Candidate for next minor release

#3 Updated by Go MAEDA 5 months ago

  • Assignee set to Marius BALTEANU

Marius, could you review this fix?

#4 Updated by Marius BALTEANU 5 months ago

Go MAEDA wrote:

Marius, could you review this fix?

Looking right now, maybe we can include the fix for this issue in the next release (4.0.3).

#5 Updated by Go MAEDA 5 months ago

  • Subject changed from The pre tag with a long sentence overflows from the preview tab. to Preformatted text overflows the preview area
  • Assignee deleted (Marius BALTEANU)
  • Target version changed from Candidate for next minor release to 4.0.3

Marius BALTEANU wrote:

Go MAEDA wrote:

Marius, could you review this fix?

Looking right now, maybe we can include the fix for this issue in the next release (4.0.3).

Thanks. Setting the target version to 4.0.3.

#6 Updated by Marius BALTEANU 5 months ago

The proposed patch is not enough, it only fixes the issue in the notes block.

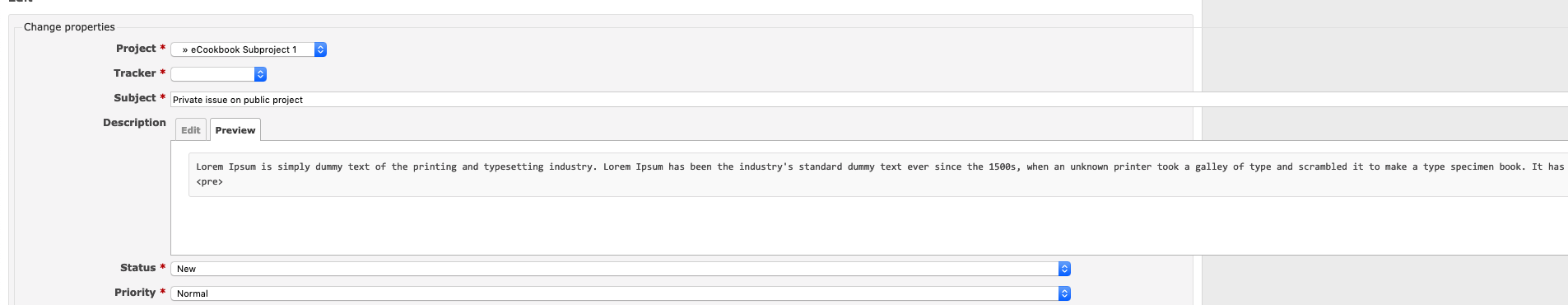

The description is also affected, please the below screenshot:

The old fix before Edit/Preview tabs was the rule 'min-width': inherit; from below:

fieldset.preview {
    margin-top: 1em;
    min-width: inherit;
    background: url(../images/draft.png);
}

My proposal is to backport the fix to all fieldset elements:

vagrant@jessie:/vagrant/project/redmine$ git diff
diff --git a/public/stylesheets/application.css b/public/stylesheets/application.css
index 7dde120..15b32df 100644
--- a/public/stylesheets/application.css
+++ b/public/stylesheets/application.css
@@ -455,7 +455,7 @@ div.square {
 form {display: inline;}
 input, select {vertical-align: middle; margin-top: 1px; margin-bottom: 1px;}
 input[type="submit"] { -webkit-appearance: button; }
-fieldset {border: 1px solid #e4e4e4; margin:0;}
+fieldset {border: 1px solid #e4e4e4; margin:0; min-width: inherit;}
 legend {color: #333;}
 hr { width: 100%; height: 1px; background: #ccc; border: 0;}
 blockquote { font-style: italic; border-left: 3px solid #e0e0e0; padding-left: 0.6em; margin-left: 0;}

I've tested in various pages in Chrome and I didn't see any issue, but any feedback is welcome.

#7 Updated by Jean-Philippe Lang 5 months ago

  • Status changed from New to Resolved
  • Assignee set to Jean-Philippe Lang
  • Resolution set to Fixed

Marius's patch looks like a good option, it's committed. Thanks.

#8 Updated by Jean-Philippe Lang 5 months ago

  • Status changed from Resolved to Closed

#9 Updated by Marius BALTEANU 5 months ago

  • Related to Feature #27758: Adds preview option to the wiki toolbar added
