Feature #31418

Stacked bar charts in the issue details report

Added by Takenori TAKAKI 7 months ago. Updated 6 months ago.

Status:ClosedStart date:
Priority:NormalDue date:
Assignee:Go MAEDA% Done:

0%

Category:Issues
Target version:4.1.0
Resolution:Fixed

Description

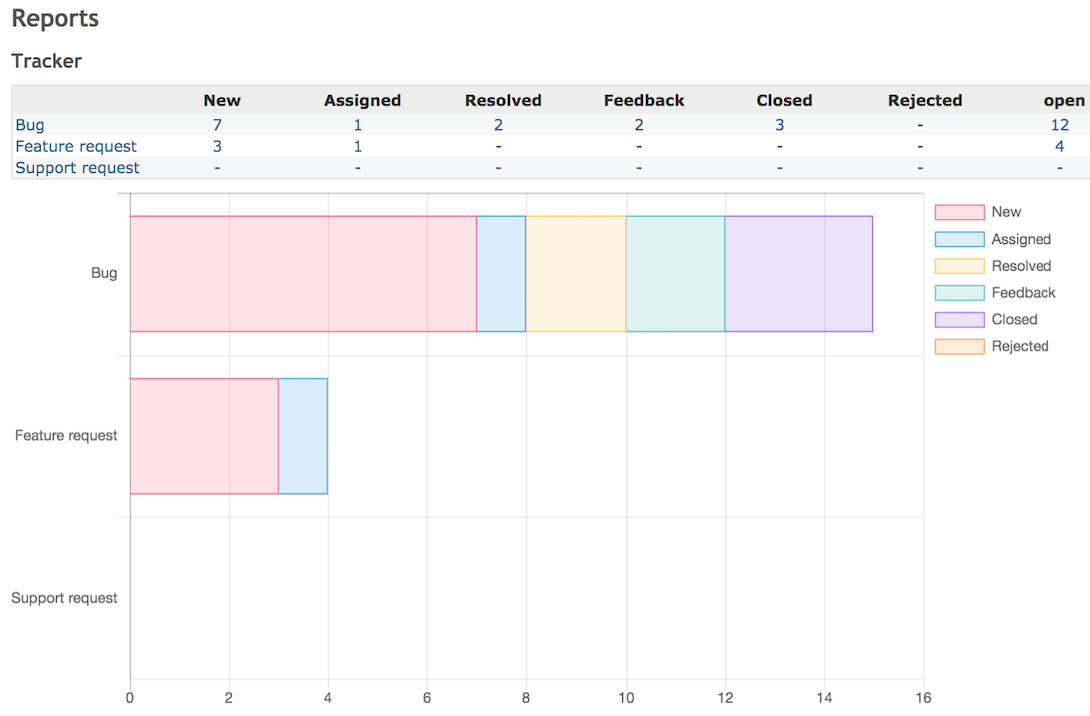

I propose a feature to visualize the results table on the 'reports/detail' page using bar chart.
By visualizing in the bar chart, we can intuitively grasp the status of Issues registered in Project.


render-reports-details-in-bar-chart.patch Magnifier (2.34 KB) Takenori TAKAKI, 2019-05-23 05:53

render-reports-details-in-bar-chart_v2.patch Magnifier (3.02 KB) Takenori TAKAKI, 2019-05-24 09:46




Related issues

Related to Redmine - Feature #31434: Update Chart.js to 2.8.0 Closed

Associated revisions

Revision 18200
Added by Go MAEDA 6 months ago

Stacked bar charts in the issue details report (#31418).

Patch by Takenori TAKAKI.

Revision 18201
Added by Go MAEDA 6 months ago

Hide closed statuses by default in the chart (#31418).

History

#1 Updated by Yuuki NARA 7 months ago

+1

#2 Updated by Go MAEDA 7 months ago

  • Target version set to Candidate for next major release

#3 Updated by Go MAEDA 7 months ago

This is an interesting feature.

One of the missing important features in Redmine is visualization. I think this feature can be the first step to implement more visualization features.

#4 Updated by Bernhard Rohloff 7 months ago

  • File deleted (render-reports-details-in-bar-chart.patch)

#6 Updated by Bernhard Rohloff 7 months ago

@Takenori TAKAKI thank you very much for attaching the patch again. I deleted it by accident.

It was a bit of a journey to find the reports view since I don't use it very often but if the patch gets accepted this could change in the future. I really like it. :)
+1

#7 Updated by Go MAEDA 7 months ago

#8 Updated by ryou soda 7 months ago

+1

#9 Updated by Takenori TAKAKI 7 months ago

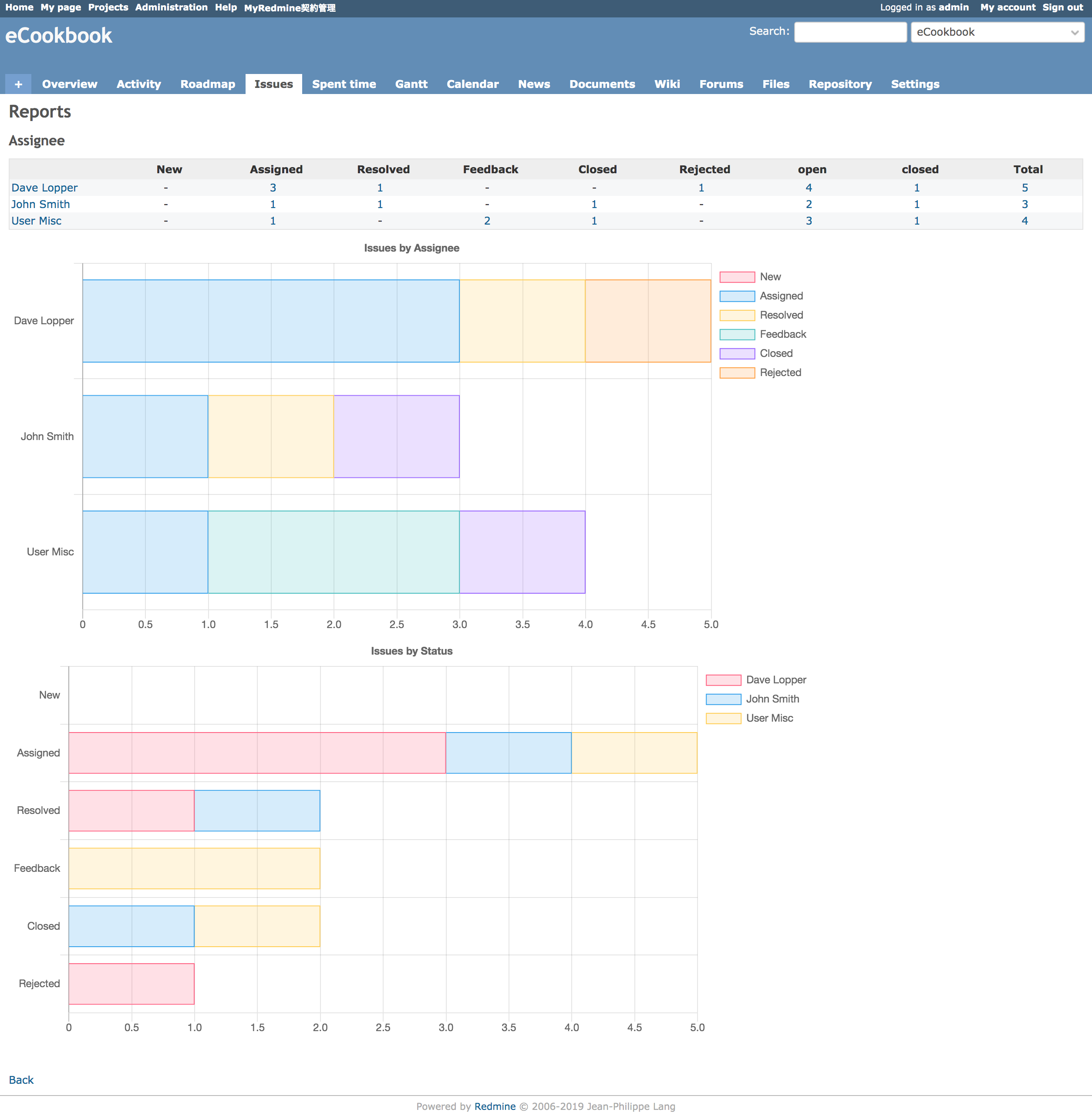

I enhanced the patch to also display a chart that shows the number of issues by status. Like the screenshot below.

#10 Updated by Go MAEDA 7 months ago

  • Category changed from UI to Issues
  • Target version changed from Candidate for next major release to 4.1.0

Let's include this feature in upcoming Redmine 4.1.0.

#11 Updated by Go MAEDA 6 months ago

  • Subject changed from Render reports/details in bar chart using Chart.js to Stacked bar charts in the issue details report
  • Status changed from New to Closed
  • Assignee set to Go MAEDA
  • Resolution set to Fixed

Committed the patch. Thank you for the nice improvement.

#12 Updated by Go MAEDA 6 months ago

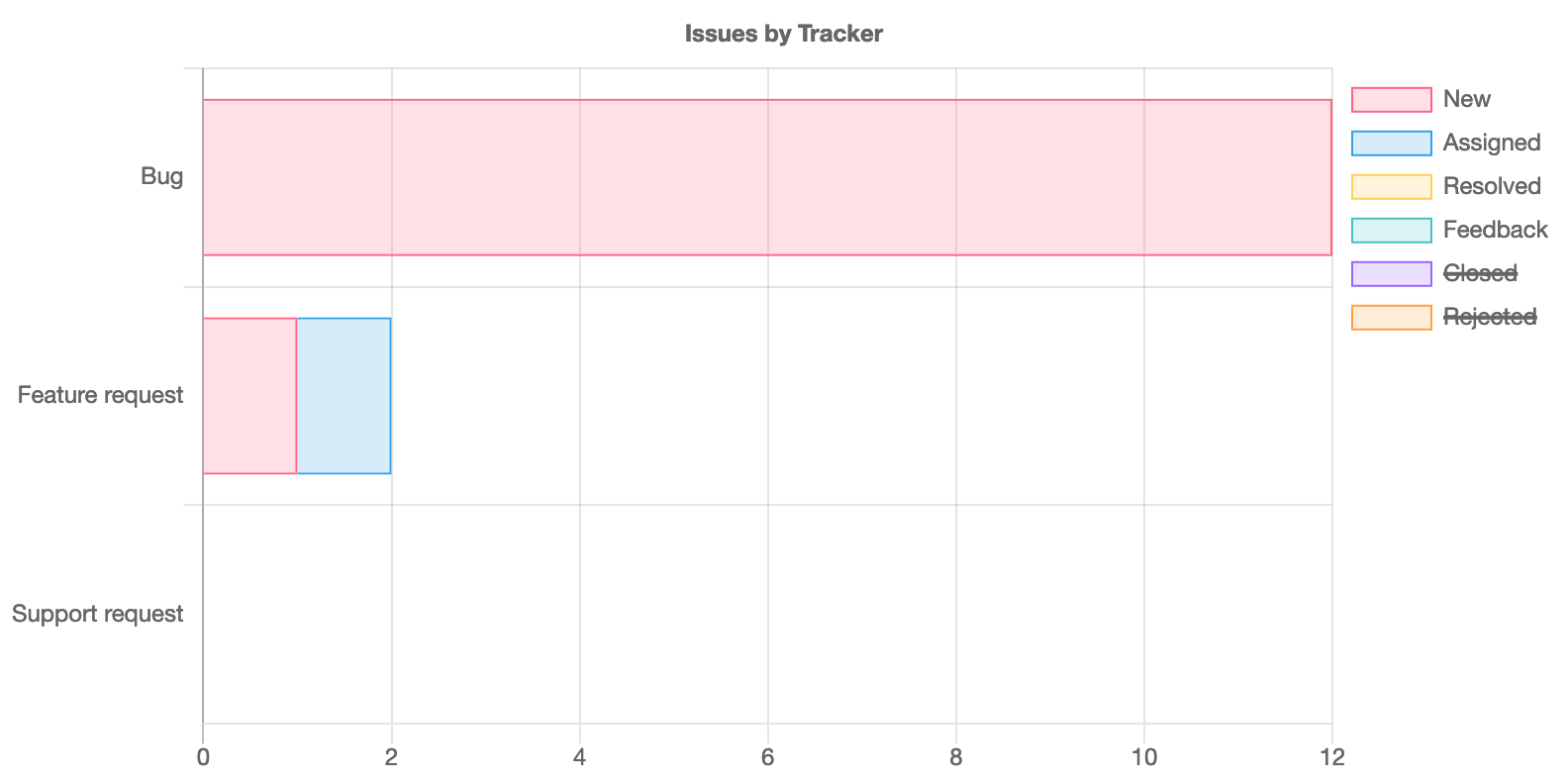

In r18201, I have slightly changed the behavior to hide closed issue statuses. As you can see in the screenshot below, hidden statuses are deleted with a strikethrough. those statuses appear in the graph if you click the status name in the legend.
