Feature #2770

Display of inline attached images in email notification

Added by Chaoqun Zou over 8 years ago. Updated 7 months ago.

Status:ReopenedStart date:2009-02-18
Priority:NormalDue date:
Assignee:-% Done:

0%

Category:Attachments
Target version:Candidate for next minor release
Resolution:

Description

Now if we would like to include attached images in the issue's description, we can use

!image_name.jpg!

This works well when the issue is displayed in browser, but the image will not displayed correctly in the notification mail.

So I thought that if we could upload the image before saving the issue could be a useful and flexible way.




hack_fix_missing_attachments.patch Magnifier (1.12 KB) Brian Crowell, 2011-07-21 20:38

attachments_controller.allow_without_auth.patch Magnifier - (INSECURE) allow attachment display without authentication (56 Bytes) Al McNicoll, 2013-02-14 13:47

f2770-unauthorized-attachments.patch Magnifier (467 Bytes) Robert Hailey, 2013-02-14 16:55


Related issues

Related to Redmine - Feature #3760: E-mail notifications for issue update/creation should inc... New 2009-08-19
Related to Redmine - Defect #16989: Inline images in email does not appear when thumbnail mac... Closed
Duplicated by Redmine - Defect #9131: Link to attachment broken in notification email at issue ... Closed 2011-08-26
Duplicated by Redmine - Defect #5672: Inline images in issues description don't have a full pat... Closed 2010-06-11

History

#1 Updated by Jean-Philippe Lang over 8 years ago

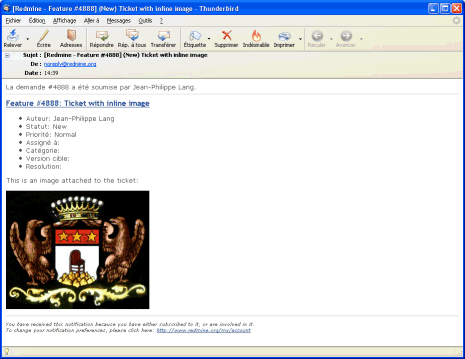

  • File ticket_with_inline_image.png added
  • Subject changed from Add a upload button to the adding attachment area (useful for including attached images in the description) to Display of inline attached images in email notification

The attachments are saved before the notification is sent, so this is not the problem.
I made a few tests with latest trunk and its works fine:

Notes:
  • the image is displayed in the HTML email only (no formatting is done for the plain text part)
  • you may need to configure your email client to authorize inline images to be displayed

#2 Updated by Chaoqun Zou over 8 years ago

  • Status changed from New to Closed

Yes, you are right. This feature works well.

I have encountered with a corrupted file which can't be displayed inline.

And I have test about 10 other attached images, all of them can be displayed correctly.

#3 Updated by Evgeny Mukhin about 7 years ago

  • Status changed from Closed to Reopened

It seems it doesn't work any longer. I've created Defect #5672

#4 Updated by Jan Wedekind almost 7 years ago

Same here: images are not displayed in email notifications.

#5 Updated by Gilbert Flamino about 6 years ago

Was this problem ever discovered? We're still experiencing problems with the initial notification emails - all update emails for the same issue go out are fine (see attachments).

The initial notification email that goes out contains just the original filename (e.g. <img src="Australia_85283.gif" alt="" />) any future update emails for the issue that go out contain the proper reference (i.e. <img src="http://testmethistime.com/attachments/download/363" alt="" />).

#6 Updated by Brian Crowell about 6 years ago

The problem is that the issues.attachment attribute doesn't have anything in it by the time it reaches parse_inline_attachments (source:trunk/app/helpers/application_helper.rb#L504). (The attachments are saved in source:trunk/app/controllers/issues_controller.rb#L138 in the create action.)

I'm not a Ruby developer, so I'm not sure how to go about fixing it. I tried obj.attachments(true) because the ActiveRecord docs say that skips caching (here), but that didn't work.

How do you go about re-loading those?

#7 Updated by Brian Crowell about 6 years ago

Figured it out. The mailer is sending out the message as soon as the issue is created, which is before attachments are added: source:trunk/app/models/issue_observer.rb.

Now-- how to fix it? Delay the mailer until later in the creation process, or create the attachments in such a way that they are already on the issue when it gets saved?

#8 Updated by Brian Crowell about 6 years ago

This patch fixes the issue, but in a hackish way.

#9 Updated by Brian Crowell about 6 years ago

And now I see why it was done that way: The same code is needed in app/models/mail_handler.rb, and the same probably needed for issue updates after their attachments are... attached.

#10 Updated by Etienne Massip almost 6 years ago

  • Target version set to Candidate for next minor release

Indeed, generation of link URL needs an already persisted Attachment object and attachments are persisted after issue at creation (but before issue on issue update).

#11 Updated by Terence Mill over 5 years ago

+1

#12 Updated by Robert Hailey over 4 years ago

I'm not sure if what I'm experiencing is exactly this issue (or just a related one, as it effects only non-public projects), so feel free to point to the correct issue & I'll copy my comment there.

What we are seeing is that the requests for images from the email's being denied for security reasons (whereas gmail requests are within the same browser that is logged into redmine, so they work).

127.6.12.34 - - [2013-01-31T18:03:36+00:00] "GET /attachments/download/552 HTTP/1.1" 302 169 0.020
127.6.12.34 - - [2013-01-31T18:03:36+00:00] "GET /login?back_url=http%3A%2F%2Four.redmine.host.com%2Fattachments%2Fdownload%2F552 HTTP/1.1" 200 4170 0.040
As such, my recommended fix (while maintaining some form of security) is that:
  1. a new 'shared secret' field be added to the attachment table
  2. that it be auto-populated with a random but ascii-nice hash
  3. that urls to attachments from emails should include this shared secret (e.g. "/attachments/download/552/3MXtKsTQ")
  4. that the attachment controller accept the hash and release the data to the email client

Variations might include the secret being per-ticket, or per-user (!), or changing with time/privileges (but breaks old emails).

#13 Updated by Robert Hailey over 4 years ago

Come to think of it... lacing the url with the user's api key (e.g. as a query string) might already be a workable solution.

#14 Updated by Al McNicoll over 4 years ago

While not everyone would be happy with this, I would personally (on my particular install) not have an issue with removing the authentication requirement on the attachments folder. Could this be done by modifying the apache config upstream of any processing by thin/mongrel/etc.?

If so, would anyone with better Apache than me mind suggesting how to prefix the existing config? Mine (the default Bitnami install) currently reads:

ProxyPass /redmine balancer://redminecluster
ProxyPassReverse /redmine balancer://redminecluster

<Proxy balancer://redminecluster>
  BalancerMember http://127.0.0.1:3001/redmine
  BalancerMember http://127.0.0.1:3002/redmine
</Proxy>

#15 Updated by Al McNicoll over 4 years ago

Scratch that - just realised that you can't retrieve the full file path from the URL request without DB lookups, so the request has to be processed by redmine.

#16 Updated by Al McNicoll over 4 years ago

OK, so a quick hack for those in the same position as me (i.e. not too concerned about login security for attachment retrieval) is to use the attached patch.
NOTE: I've not used patch/diff before, so it may not be in the right format. If in doubt, the line proposed should be added at attachments_controller.rb after line 22.

I would love a proper (read: secure) fix, however, along the lines suggested by Robert Hailey. Is there a security concern with handing out the API key over email and putting it in every image URL?

#17 Updated by Robert Hailey over 4 years ago

Wow thanks for the patch, this is really helpful.

Al McNicoll wrote:

NOTE: I've not used patch/diff before, so it may not be in the right format. If in doubt, the line proposed should be added at attachments_controller.rb after line 22.

Yea, even a line number is still a bit shaky without a version number (& unmodified sources).

I was told some time ago that the customary way to run diff is one of two equivalent ways:

diff -wub $ORIGINAL $MODIFIED
diff -wub original/file.ext{.bak,}

...and that is now a habit, I don't think I use diff any other way.

I've taken the liberty of reformulating your patch (attached & seen below). Although I'm quite sure, it might be good to object if the added line is in the wrong place.

--- app/controllers/attachments_controller.rb.bak   2013-02-14 09:43:05.000000000 -0600
+++ app/controllers/attachments_controller.rb       2013-02-14 09:43:26.000000000 -0600
@@ -20,6 +20,7 @@
   before_filter :file_readable, :read_authorize, :only => [:show, :download]
   before_filter :delete_authorize, :only => :destroy
   before_filter :authorize_global, :only => :upload
+  skip_before_filter :check_if_login_required

   accept_api_auth :show, :download, :upload

#18 Updated by Robert Hailey over 4 years ago

Unfortunately McNicoll's patch does not work for me (version 1.4.x), I have to disable the read_authorize filter too:

diff --git a/app/controllers/attachments_controller.rb b/app/controllers/attachments_controller.rb
index cb975e8..46bd8ef 100644
--- a/app/controllers/attachments_controller.rb
+++ b/app/controllers/attachments_controller.rb
@@ -17,9 +17,10 @@

 class AttachmentsController < ApplicationController
   before_filter :find_project, :except => :upload
-  before_filter :file_readable, :read_authorize, :only => [:show, :download]
+  before_filter :file_readable, :read_authorize, :only => :show
   before_filter :delete_authorize, :only => :destroy
   before_filter :authorize_global, :only => :upload
+  skip_before_filter :check_if_login_required, :only => :download

   accept_api_auth :show, :download, :upload

#19 Updated by Fernando Hartmann over 4 years ago

+1 to solve this.
A lot of my users complain about to have to log in Redmine just to see the in-line image.
How about to have an option to attach the image on the email body ? The mail will become bigger it may be a less price to pay to have the image in the email.

#20 Updated by Brian Crowell over 4 years ago

Fernando Hartmann wrote:

How about to have an option to attach the image on the email body ? The mail will become bigger it may be a less price to pay to have the image in the email.

That's actually what my patches in #3760 do.

#21 Updated by Fernando Hartmann over 4 years ago

Brian Crowell wrote:

That's actually what my patches in #3760 do.

So I suggest this two and #12516 should set as related

#22 Updated by Brian Crowell over 4 years ago

Sorry for the duplicate update. Hit Refresh in the browser.

#23 Updated by Christian Baus over 4 years ago

+1 for this :)

#24 Updated by Jiří Křivánek about 4 years ago

+1

I would preffer having the configuration options:
  • Either allow downloading the email attached images without login.
  • Or enclose the images directly into the email body (multipart emails work fine these days to me with the QR-code images).
  • Or keep the current behavior - i.e. the email images are completely useless as the email client cannot log into Redmine to download it (well, may be that some email clients can be configured for this - I am using Apple Mail and have no idea how to achieve this).

#25 Updated by Toshi MARUYAMA about 3 years ago

  • Related to Defect #16989: Inline images in email does not appear when thumbnail macro is used. added

#26 Updated by Kevin Palm about 3 years ago

+1 for any of the proposed solutions

#27 Updated by Sylvain Tissot almost 3 years ago

+1 we encounter the same problem on a Redmine server running over HTTPS.

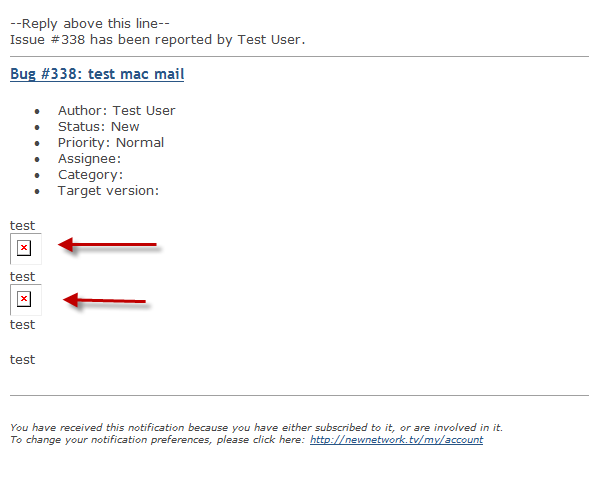

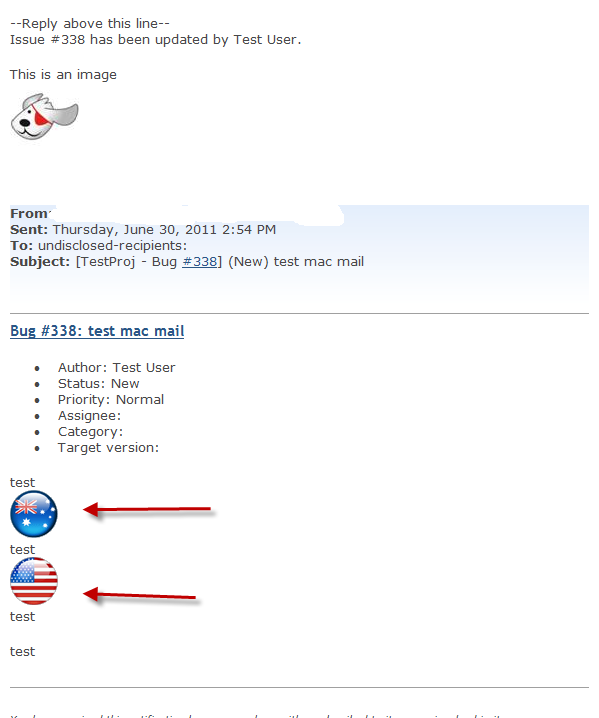

The inline images do not display in Apple Mail, instead the user sees a question mark.

#28 Updated by Dima Kalachov over 2 years ago

Hey guys!

Here is solution using multipart emails: https://github.com/dkalachov/redmine_email_images

Tested on redmine 2.6 and 3.0.

#29 Updated by huang huang about 2 years ago

Can't upload attachment when create new issue or update via email.

huanghanzhen@ee-200:~/rubyworkspace/function_tracker/redmine-3.0.3$ rake redmine:email:receive_pop3 RAILS_ENV="production" host=fg-pop.chthibox.net username=xxxx password=xxxx folder=Inbox project=test allow_override=project --trace
** Invoke redmine:email:receive_pop3 (first_time)
** Invoke environment (first_time)
** Execute environment
** Execute redmine:email:receive_pop3
undefined method `charset' for nil:NilClass
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/plugins/redmine_email_images/lib/email_receive_inline_patch.rb:43:in `decode_part_body'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/plugins/redmine_email_images/lib/email_receive_inline_patch.rb:28:in `decoded_html'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/plugins/redmine_email_images/lib/email_receive_inline_patch.rb:15:in `add_attachments_with_remove_inline_images'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:206:in `receive_issue'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:182:in `dispatch_to_default'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:167:in `dispatch'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:142:in `receive'
/var/lib/gems/2.1.0/gems/actionmailer-4.2.1/lib/action_mailer/base.rb:530:in `block in receive'
/var/lib/gems/2.1.0/gems/activesupport-4.2.1/lib/active_support/notifications.rb:164:in `block in instrument'
/var/lib/gems/2.1.0/gems/activesupport-4.2.1/lib/active_support/notifications/instrumenter.rb:20:in `instrument'
/var/lib/gems/2.1.0/gems/activesupport-4.2.1/lib/active_support/notifications.rb:164:in `instrument'
/var/lib/gems/2.1.0/gems/actionmailer-4.2.1/lib/action_mailer/base.rb:527:in `receive'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:46:in `receive'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mail_handler.rb:51:in `safe_receive'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/lib/redmine/pop3.rb:51:in `block (2 levels) in check'
/usr/lib/ruby/2.1.0/net/pop.rb:665:in `each'
/usr/lib/ruby/2.1.0/net/pop.rb:665:in `each_mail'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/lib/redmine/pop3.rb:48:in `block in check'
/usr/lib/ruby/2.1.0/net/pop.rb:531:in `start'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/lib/redmine/pop3.rb:43:in `check'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/lib/tasks/email.rake:161:in `block (4 levels) in <top (required)>'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/app/models/mailer.rb:383:in `with_synched_deliveries'
/home/huanghanzhen/rubyworkspace/function_tracker/redmine-3.0.3/lib/tasks/email.rake:160:in `block (3 levels) in <top (required)>'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:240:in `call'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:240:in `block in execute'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:235:in `each'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:235:in `execute'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:179:in `block in invoke_with_call_chain'
/usr/lib/ruby/2.1.0/monitor.rb:211:in `mon_synchronize'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:172:in `invoke_with_call_chain'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/task.rb:165:in `invoke'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:150:in `invoke_task'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:106:in `block (2 levels) in top_level'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:106:in `each'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:106:in `block in top_level'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:115:in `run_with_threads'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:100:in `top_level'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:78:in `block in run'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:176:in `standard_exception_handling'
/var/lib/gems/2.1.0/gems/rake-10.4.2/lib/rake/application.rb:75:in `run'
/var/lib/gems/2.1.0/gems/rake-10.4.2/bin/rake:33:in `<top (required)>'
/usr/local/bin/rake:23:in `load'
/usr/local/bin/rake:23:in `<main>'

#31 Updated by Igor Antonevich 7 months ago

+1. Any ideas for fix this issue?

Also available in: Atom PDF
