I have prepared a set of patches that add a dark mode to the default theme. It covers both points from Harald Welte's last note: it is a per-user setting, and by default it follows the OS/browser setting (prefers-color-scheme). It is not a separate global theme.

The patches are against current trunk and can be applied in order with git am.

Approach¶

The default stylesheets already use the Open Color CSS variables almost everywhere. So most of the dark mode comes from redefining these variables, not from overriding single rules.

• A new stylesheet, dark.css, redefines the semantic tokens and the Open Color palette:
  • The grays are inverted, based on the GitHub dark palette: page #0d1117, boxes #161b22, borders #30363d, text #e6edf3.
  • For the hues, steps 0-3 become dark tinted backgrounds, steps 4-6 stay as they are, and steps 7-9 become light colors for text. These values are generated from open-color.css.
  • The Redmine blue is kept, just darker: top menu #12273a, header #1c3d57, selection #2c6aa0.
• dark.css is loaded with media="screen and (prefers-color-scheme: dark)". Older browsers simply keep the light mode. Printing always uses the light colors.
• A few elements get explicit rules: avatars and badges keep their colors; the issue box, login form and wiki TOC get a neutral background instead of yellow/orange; plus jQuery UI widgets and the wiki toolbar icons (SVGs with a fixed stroke, so the buttons are inverted).

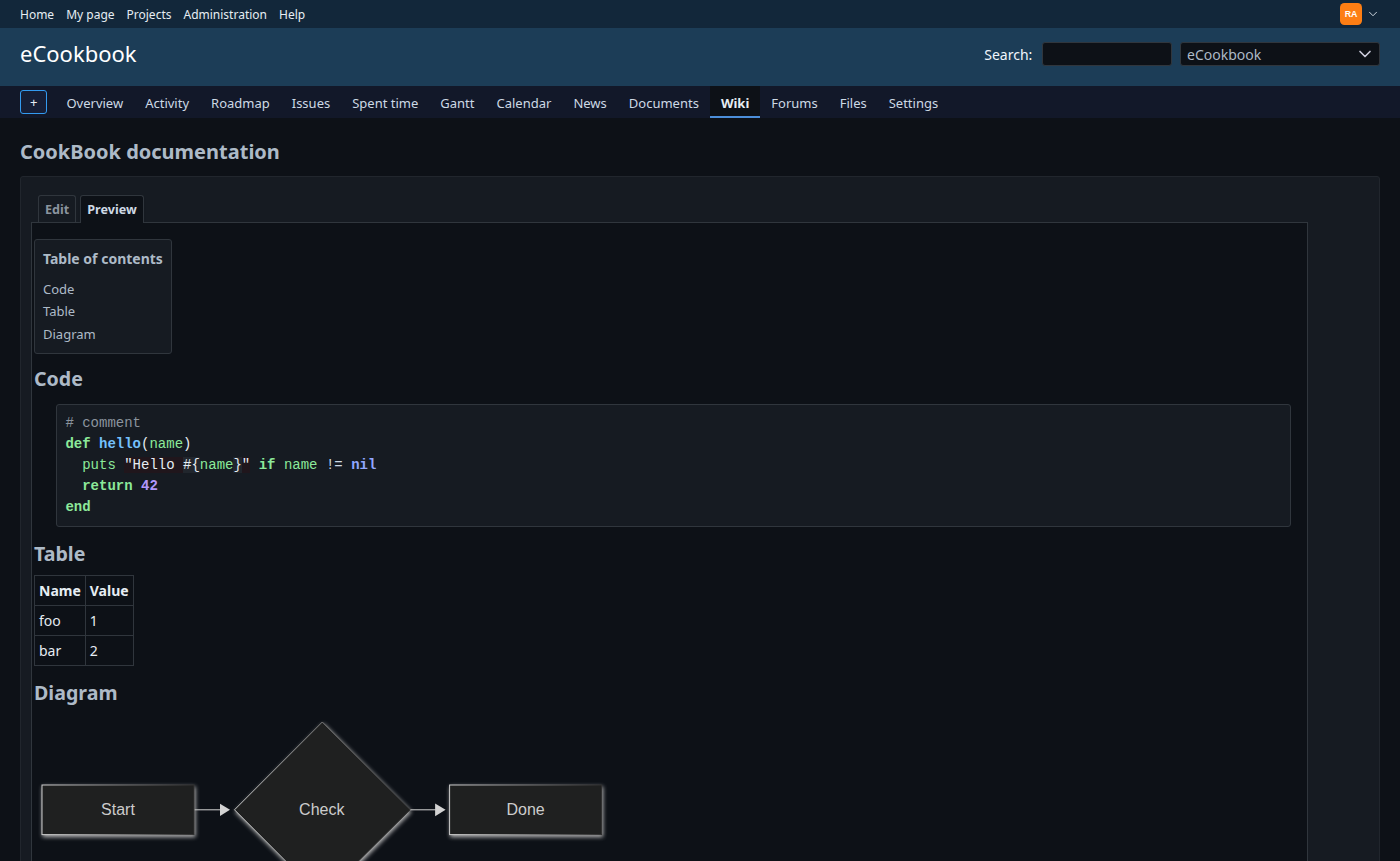

• Mermaid diagrams are rendered with Mermaid's dark theme when the page is in dark mode.
• The dark mode is only enabled for the default theme. With a custom theme, dark.css is not loaded and the preference is hidden, because themes often have hard-coded colors and would only be partly darkened.
• No new dependencies and no database migration are needed.

Patches¶

1. 0001-Introduce-semantic-color-tokens-for-backgrounds-sele.patch (6 files)
   Refactoring with no visible change. Hard-coded white backgrounds and the colors of selected items and the header/top menu text are replaced with CSS custom properties in :root, such as --color-background, --color-background-overlay and --color-selected-background. White text on colored backgrounds stays white. The only visible difference: the context menu selection text is now #fff instead of #f8f9fa.
2. 0002-Add-a-dark-color-scheme-for-the-default-theme.patch (4 files)
   Adds dark.css, the link in the base layout, the Mermaid theme switch, and tests.
3. 0003-Add-a-color-scheme-preference-to-choose-between-ligh.patch (9 files)

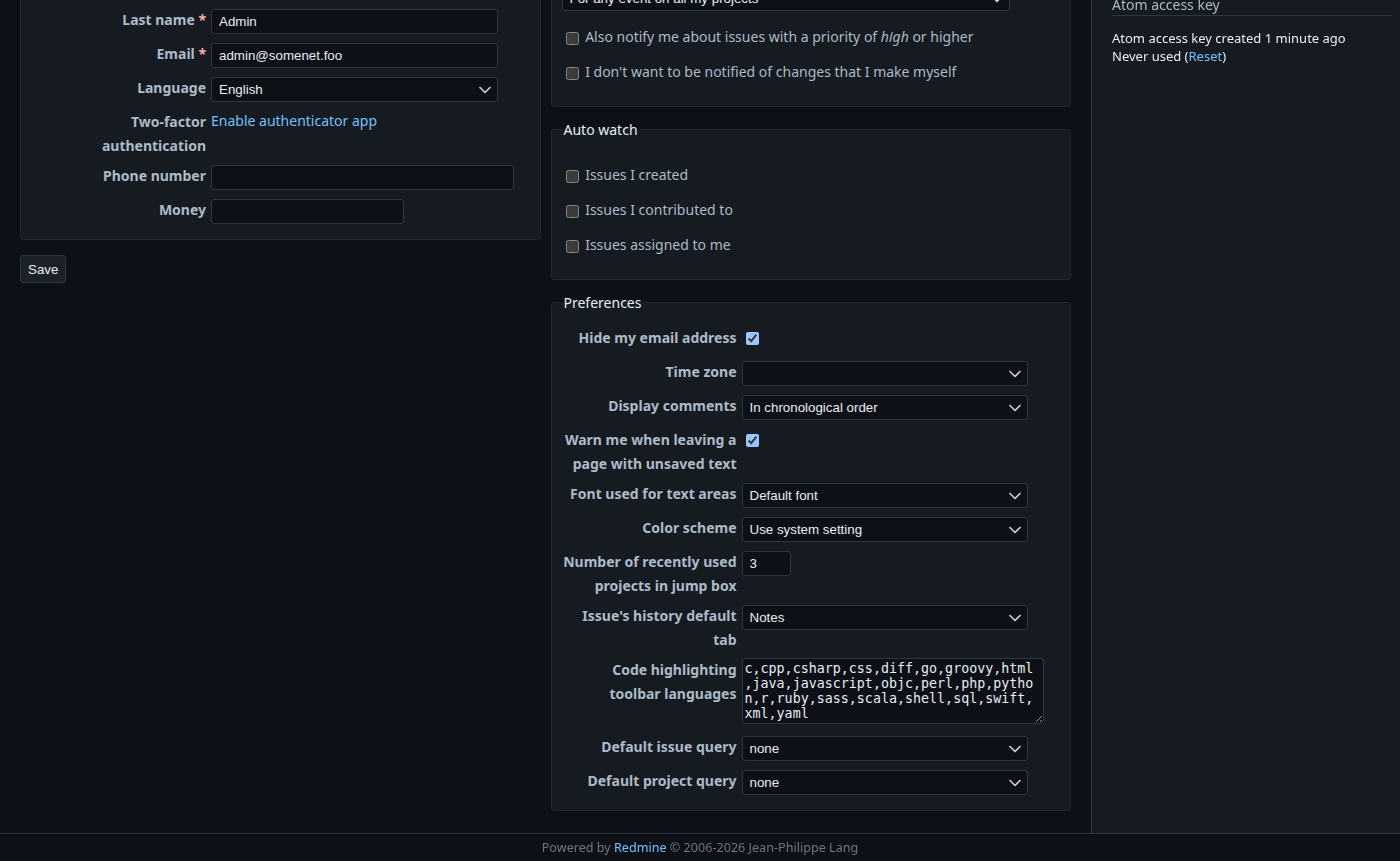

   Adds a "Color scheme" preference to My account with the options Use system setting (default), Light and Dark. It is stored in UserPreference#others like textarea_font, so no migration is needed. A new helper, color_scheme_tags, renders the color-scheme meta tag and sets the media attribute of dark.css according to the preference (screen for Dark; not loaded at all for Light). Only en.yml is updated.
4. 0004-Apply-the-color-scheme-to-the-wiki-syntax-help-pages.patch (50 files)

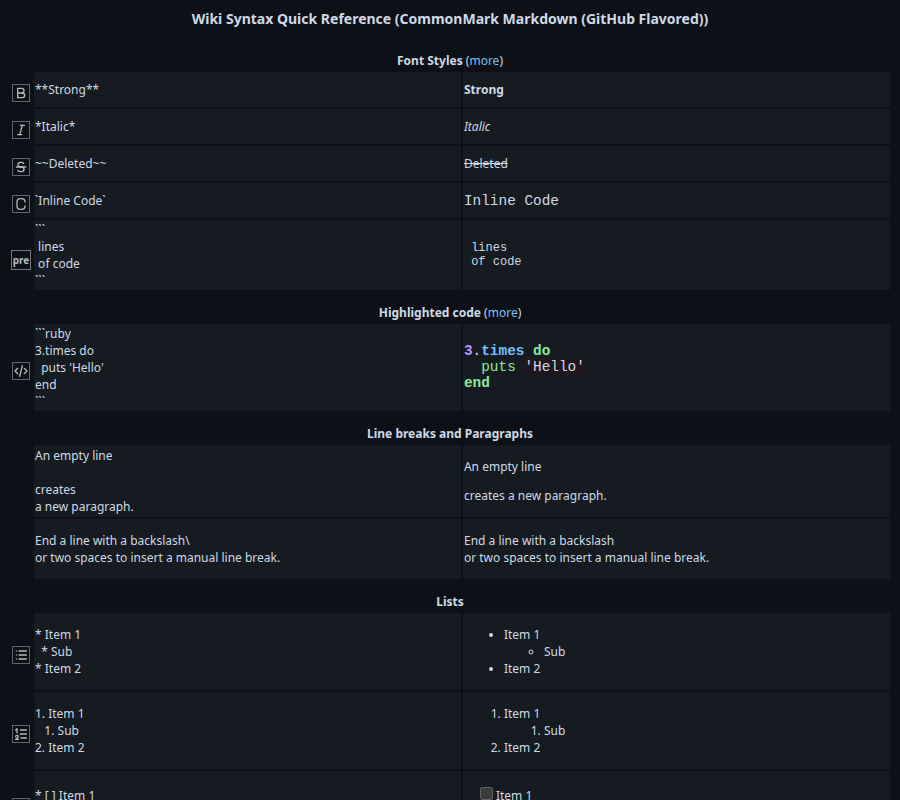

   The wiki syntax help pages are rendered without the base layout. Each of them now calls a new helper, heads_for_wiki_syntax, in place of its stylesheet_link_tag line, so the help pages follow the setting too. Nothing else in these files is changed.

Testing¶

• New tests: test/integration/lib/redmine/themes_test.rb, test/functional/welcome_controller_test.rb, test/functional/my_controller_test.rb, test/functional/users_controller_test.rb, test/functional/help_controller_test.rb.
• The related functional, integration, unit and helper tests pass. stylelint and RuboCop report no offenses.

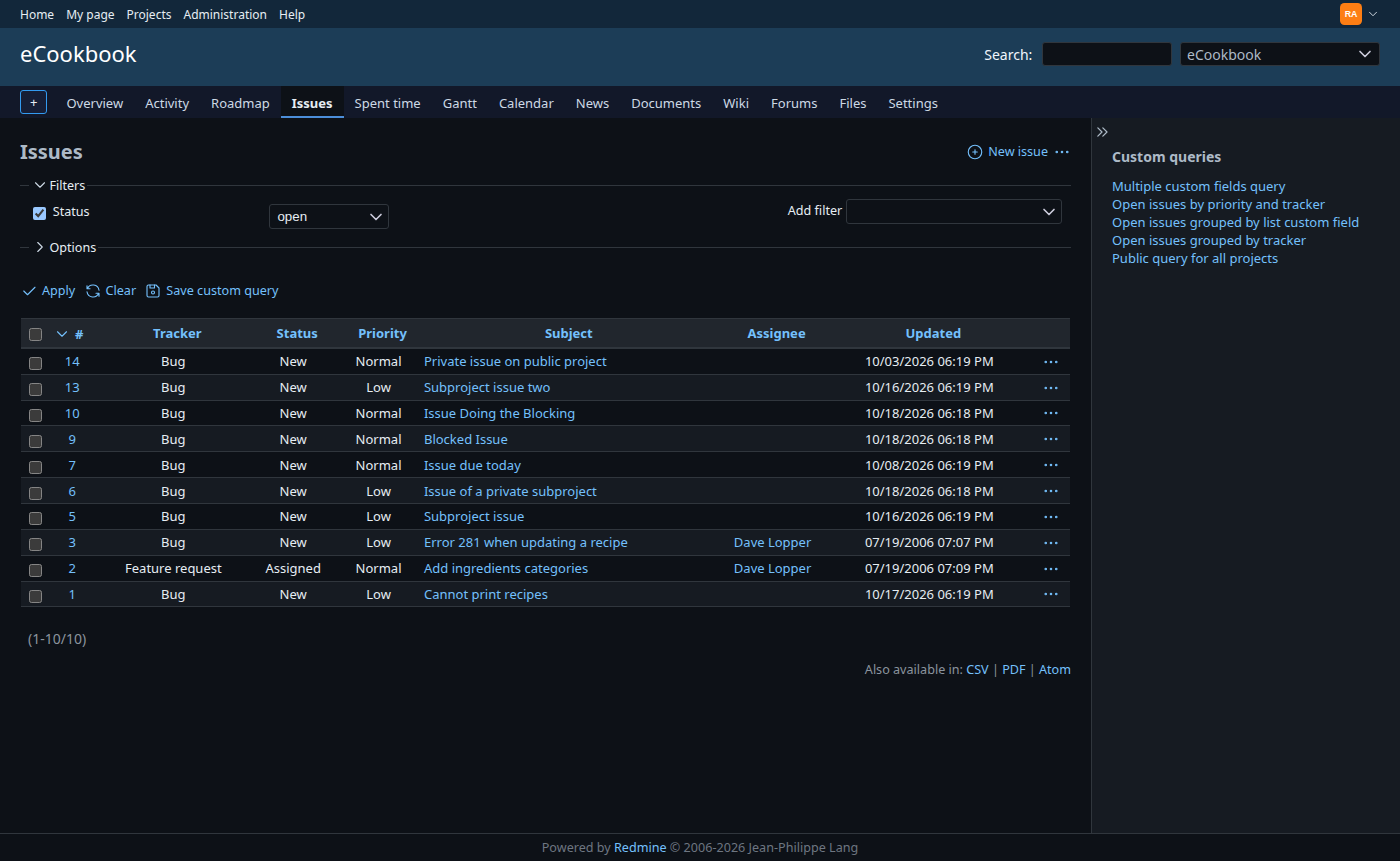

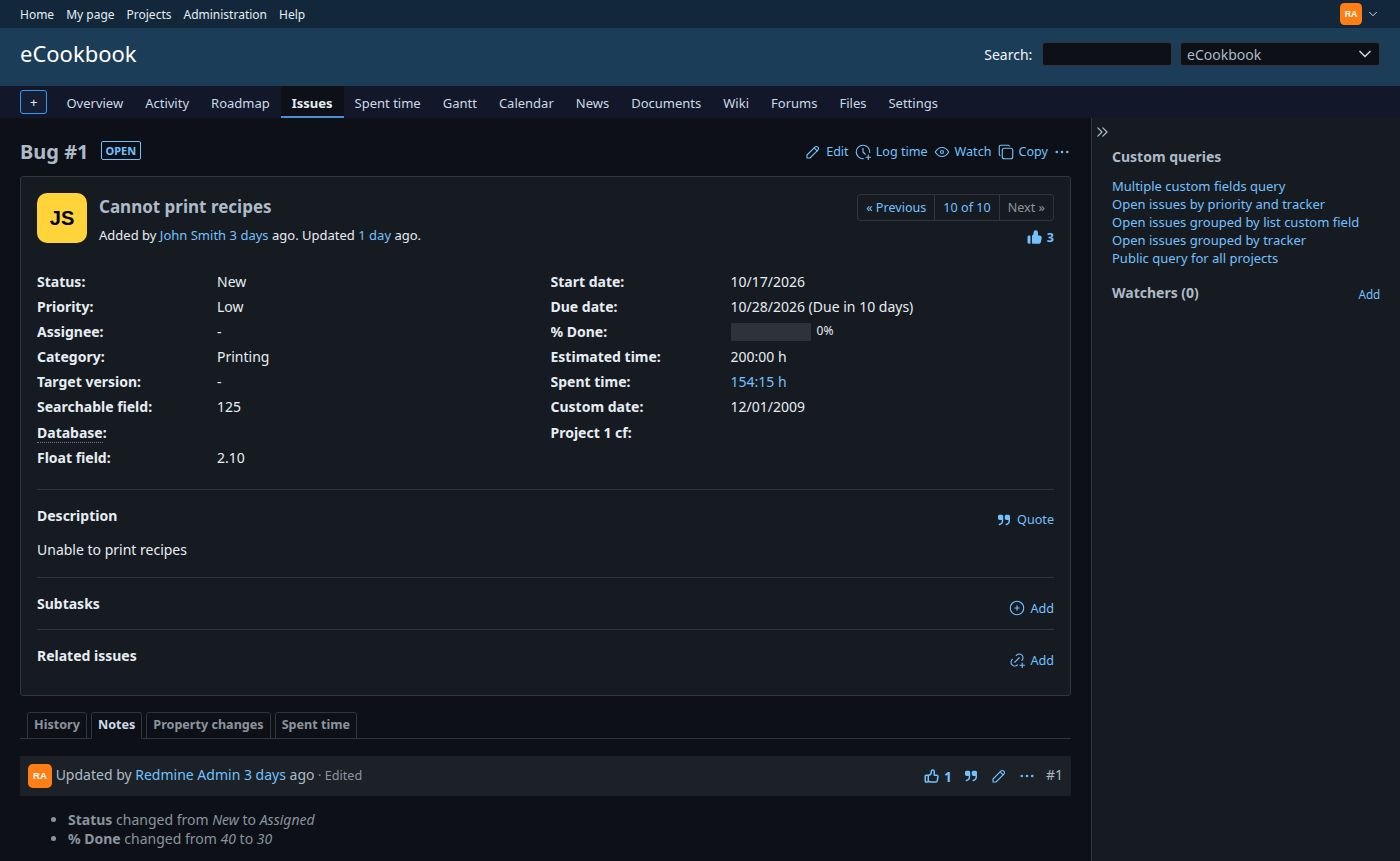

• I checked the pages manually in Chrome with the dark mode on, as anonymous and as admin: issue list with context menu, issue view and edit, wiki (code highlighting, tables, TOC, Mermaid, preview), Gantt, calendar, roadmap, activity, forums, My page, My account, administration, workflows, and the wiki syntax help pages.

Known limitations / possible follow-ups¶

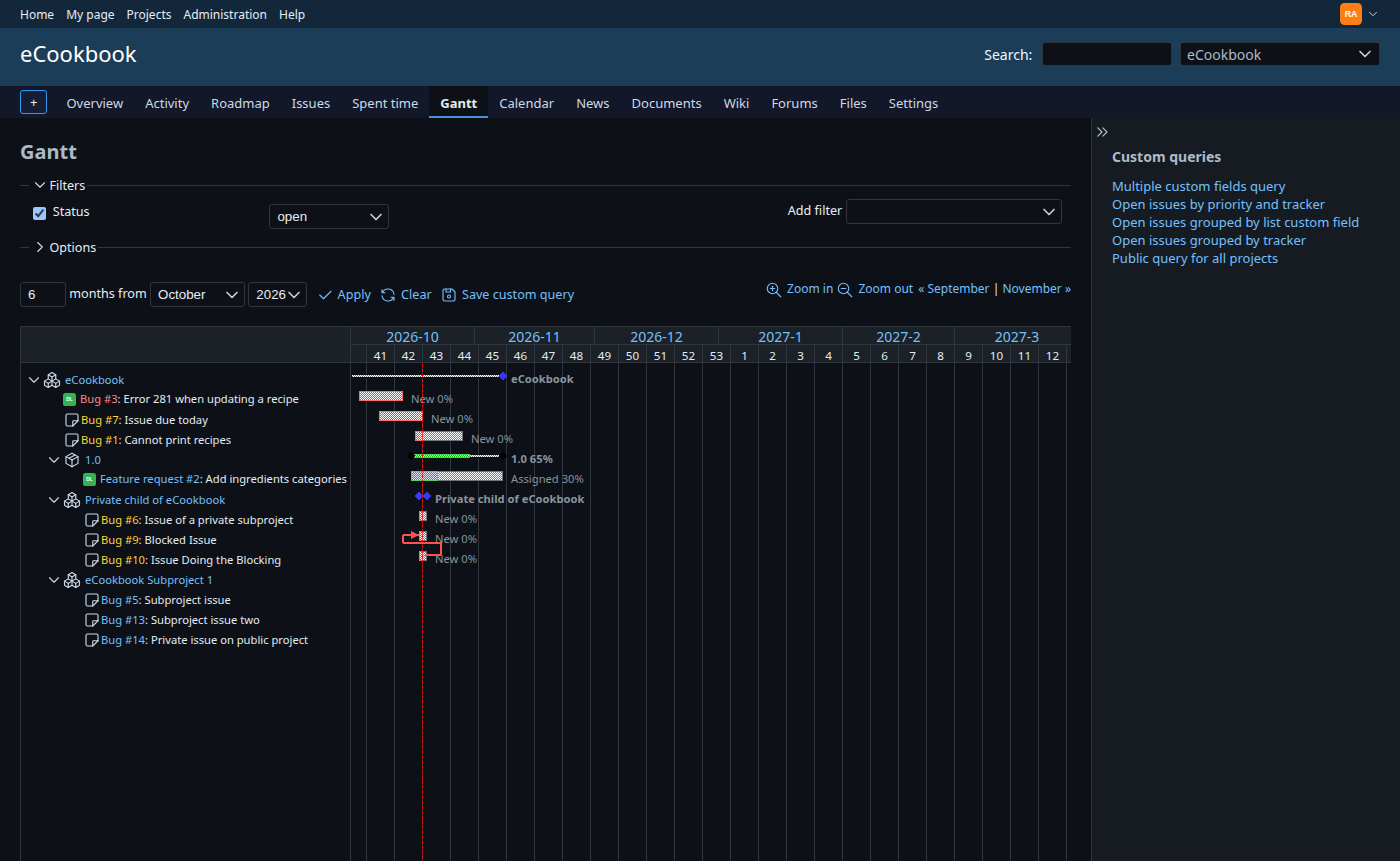

• The striped pattern of the Gantt bars and the legacy PNG icons are images and do not adapt.
• Custom themes cannot opt in to the dark mode yet. This could be added later, for example with a marker file in the theme, similar to theme.js.
• light-dark() would make dark.css unnecessary, but it would also break the light mode in browsers without support for it. That is why the separate stylesheet with a media attribute is used.
• With patch 0002, a Mermaid diagram downloaded as PNG in dark mode keeps the dark theme: light lines and labels on a transparent background, which are hard to read in documents with a light background. I have a small follow-up patch that renders the diagram again with the default theme for the download only. I will post it separately.

Feedback on the color choices and the overall approach is welcome.
